| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
148 pcs
|
148 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Board Pitch | |
| Cable Pitch | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Pitch | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge |

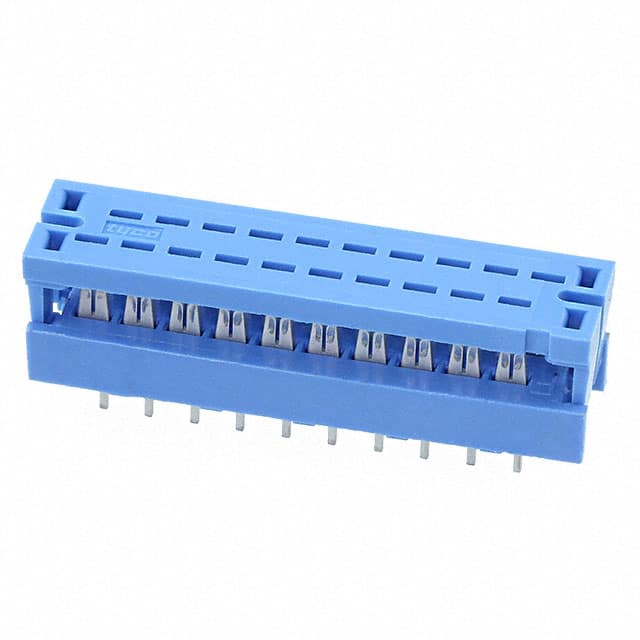

The TE Connectivity 1658525-9 is a 20-position DIP header IDC connector designed for ribbon cable termination. It features a 2.54mm board pitch and row spacing, with two rows of contacts. The connector is through-hole mounted and uses IDC termination for 26-28 AWG stranded or solid wire. Contact finish is tin with a thickness of 2.54µm. The blue connector includes a feed-through feature for pass-through wiring. This connector is suitable for board-in, direct wire-to-board applications in rectangular connector systems.
20 positions.
Board pitch is 2.54mm, row spacing is also 2.54mm.
Through hole.
26-28 AWG stranded or solid wire.
Tin with 2.54µm thickness.
2 rows.
IDC (Insulation Displacement Connection).
