| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
352 pcs
|
352 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Cable Pitch | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge |

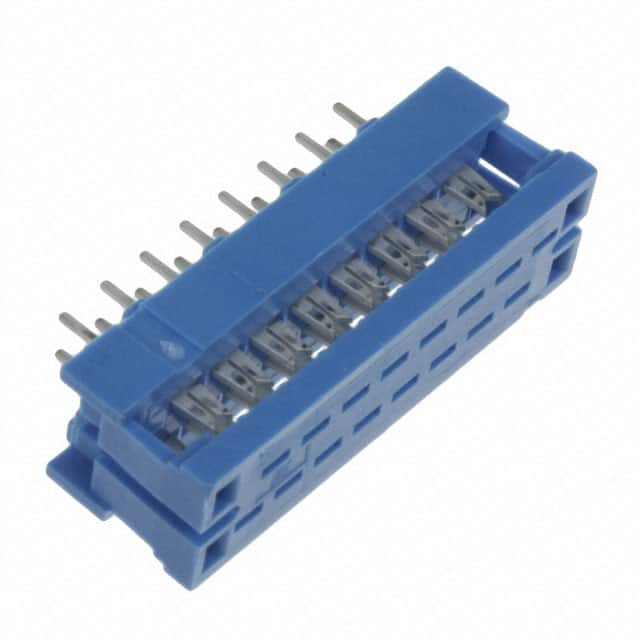

The TE Connectivity 1658525-8 is a 16 position, 2 row DIP header IDC connector designed for board-to-wire connections. It features a 0.100" (2.54mm) pitch on the board side and a 0.050" (1.27mm) cable pitch, making it suitable for ribbon cable termination. The connector uses IDC (Insulation Displacement Contact) termination for quick and reliable wire connections, accepting 26-28 AWG stranded or solid wires.
The through hole mounting ensures secure attachment to printed circuit boards. The contacts are finished with tin, with a thickness of 100.0µin (2.54µm), providing good solderability and corrosion resistance. The blue color and feed-through feature allow for easy identification and pass-through wiring. This connector is commonly used in applications requiring a compact and reliable interface between a PCB and a ribbon cable.
16 positions in 2 rows.
The board pitch is 0.100" (2.54mm) and the cable pitch is 0.050" (1.27mm).
Through hole mounting.
26-28 AWG stranded or solid wires.
Tin with a thickness of 100µin (2.54µm).
