| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,956 pcs
|
3956 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Board Spacing | |
| Cable Pitch | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire Gauge |

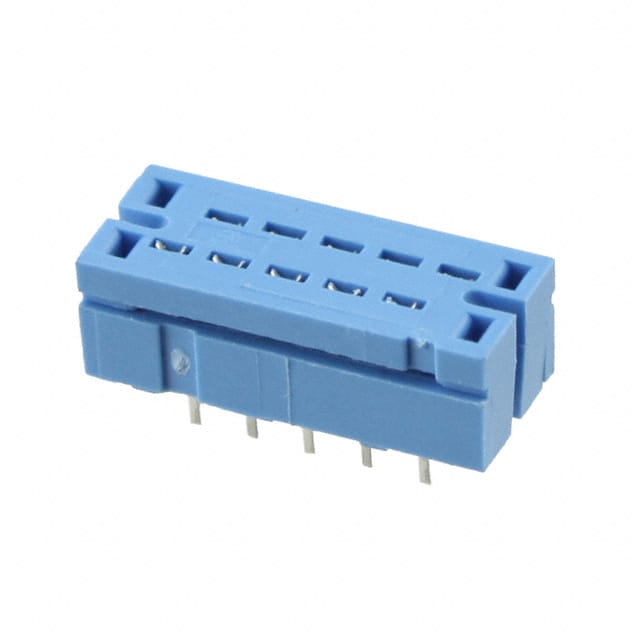

The TE Connectivity 1658525-6 is a 10-position DIP header IDC connector designed for direct wire-to-board applications. It features 2 rows with a row spacing of 0.100" (2.54mm) and a cable pitch of 0.050" (1.27mm), making it suitable for use with 26-28 AWG stranded or solid wire.
The connector uses IDC (Insulation Displacement Contact) termination for the cable and offers a feed-through design. The contacts are finished with tin, providing a reliable connection. The housing is blue in color, and the part is RoHS3 compliant and REACH unaffected.
The 1658525-6 has 10 positions arranged in 2 rows.
The row spacing is 0.100" (2.54mm).
This connector is mounted through hole.
The connector accepts 26-28 AWG stranded or solid wire.
It uses IDC (Insulation Displacement Contact) termination.
