| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

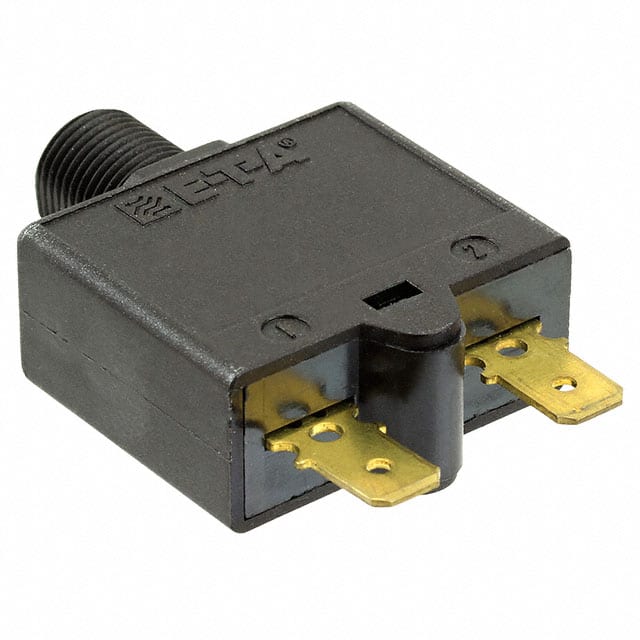

The E-T-A 1658-G41-02-P10-8A is a single-pole thermal circuit breaker with a current rating of 8A. It is designed for panel mounting and offers a voltage rating of 240 VAC or 28 VDC.
This circuit breaker operates within an ambient temperature range of -20 to +60 °C. It has an interrupting capacity of 2,000 A at AC 240 V, AC 120 V, and DC 28 V. The device meets international requirements with no exposed current-carrying metal parts except for terminals.
Key electrical specifications include a rated impulse withstand voltage of 2.5 kV and a dielectric strength of AC 3,000 V. Insulation resistance is greater than 100 MΩ at DC 500 V. The operating area has a degree of protection of IP40, while the terminal area is IP00.
Mechanical and environmental testing includes vibration resistance of 8 g, shock resistance of 30 g, and resistance to corrosion and humidity as per IEC standards. The typical life is rated for 1,000 operations at 2 x I N. Applications include battery chargers, consumer products, power supplies, and motors.
240 VAC and 28 VDC.
This variant is rated 8A, but the series supports 5 to 30 A.
2,000 A at AC 240 V, AC 120 V, and DC 28 V.
-20 to +60 °C, with a maximum of +40 °C for currents below 8A.
Panel mount.
Push to reset.
IP40 on the operating area and IP00 on the terminal area.
