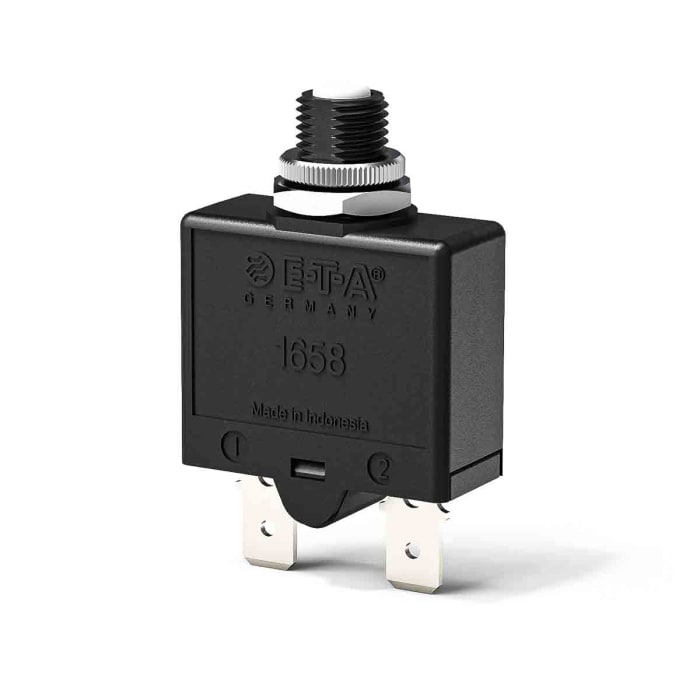

The E-T-A 1658-G21-02-P10-6A is a single-pole thermal overcurrent circuit breaker from the 1658 series. It is designed for panel mounting and features a manual reset mechanism with a push-to-reset actuator.
This circuit breaker has a current rating of 6A and can handle a voltage rating of 240V AC or 28V DC. It offers a high interrupting capacity of up to 2000A.
Key technical specifications include a width of 14mm, height of 32mm, and depth of 21.7mm, with a mounting hole size of 9.6mm. The operating temperature range is -20°C to +60°C. It meets international requirements with no exposed current-carrying metal parts except for terminals.
Typical applications for this device include battery chargers, consumer products, power supplies, and motors. It is approved to UL, CSA, VDE, and EN 60934 (IEC 60934) standards.
The current rating is 6A.
It has a rated AC voltage of 240V and a rated DC voltage of 28V.
This circuit breaker is designed for panel mounting.
The operating temperature range is -20°C to +60°C.
The interrupting capacity is 180A for 5-7A and 200A for 8-30A (Icn). It is 1000A for 5-16A AC 240V and 2000A for 5-30A AC 125V or DC 32V (IN UN).
