| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Termination Style | |
| Voltage Rating |

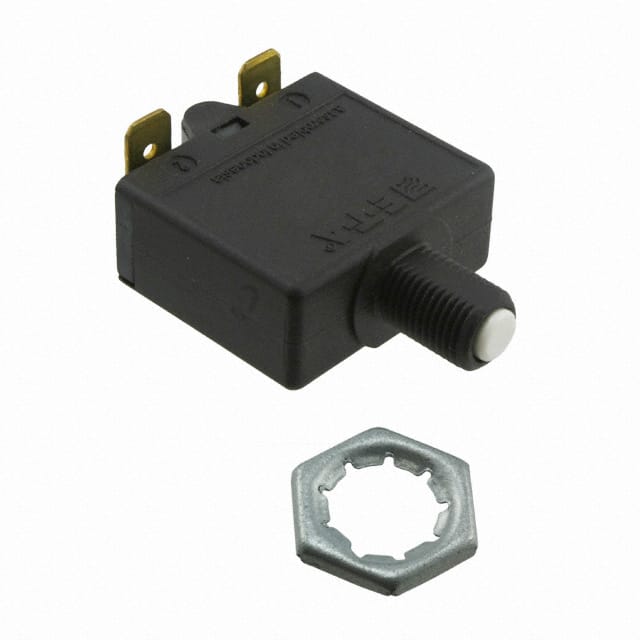

The E-T-A 1658-G21-01-P13-15A is a single-pole thermal circuit breaker with a manual reset mechanism. It features a cost-effective design meeting international requirements and has no exposed current-carrying metal parts except for terminals.
Key electrical specifications include a current rating of 15A and voltage ratings of 240VAC and 28VDC. The breaker type is thermal, and it has a panel mount configuration with a push-to-reset actuator. It is approved by UL, CSA, VDE, and EN 60934.
Typical applications for this circuit breaker include battery chargers, consumer products, power supplies, and motors. The operating temperature range is -20°C to +60°C, with a reduced maximum ambient temperature of +40°C for currents up to 7A. The device offers an interrupting capacity of 1000A at 240VAC and 2000A at 125VAC or 32VDC.
