| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Termination Style | |
| Voltage Rating |

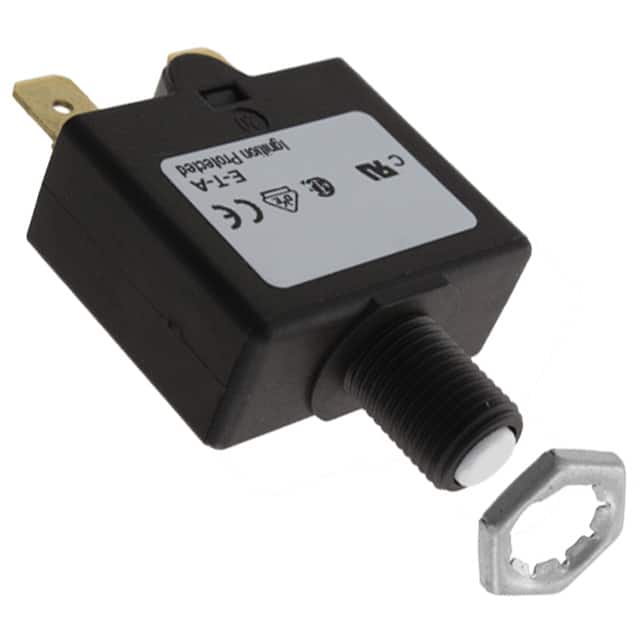

The E-T-A 1658-G21-01-P10-8A is a single-pole thermal overcurrent circuit breaker designed for cost-effectiveness and international requirements. It offers a manual reset with a cycling trip-free mechanism and no exposed current-carrying metal parts.
Key electrical specifications include a voltage rating of 240V AC and 28V DC, with a current rating of 8A. The breaker type is thermal, and it has an interrupting capacity of 200A. It also features a dielectric strength of 3000V AC and an insulation resistance greater than 100 MΩ.
Mechanically, this circuit breaker is designed for panel mounting and has a push-to-reset actuator. It operates within an ambient temperature range of -20°C to +60°C (-4°F to +140°F). The degree of protection for the operating area is IP40.
Typical applications for this series include battery chargers, consumer products, power supplies, and motors. It meets international standards including UL, CSA, VDE, and EN 60934 (IEC 60934).
240V AC and 28V DC.
-20 to +60°C.
Panel mount with blade terminals.
8A.
Thermal.
200A.
IP40.
