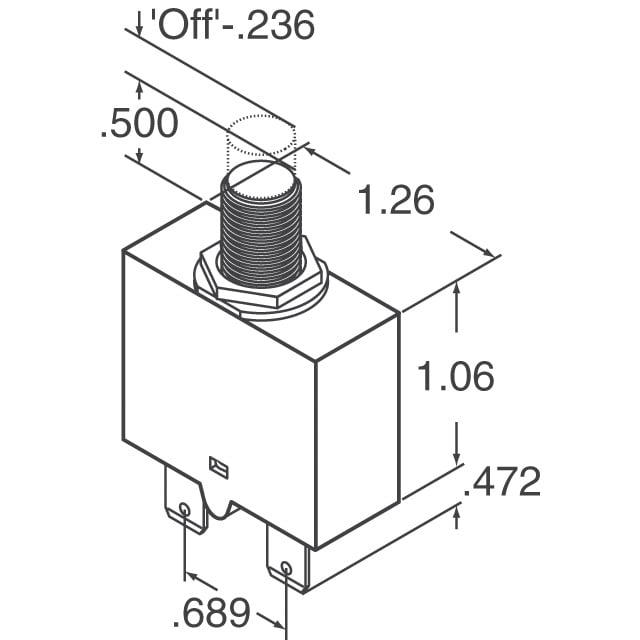

This E-T-A 1658 series thermal overcurrent circuit breaker, part number 1658-G21-00-P10-D01-25A, offers a reliable solution for circuit protection in various applications. It is designed for panel mounting and features a manual reset actuator.
The breaker has a current rating of 25A and can operate at voltages up to 240VAC or 28VDC. It is a single-pole device designed to meet international requirements, with no exposed metal parts that could become current-carrying except for terminals.
Key technical specifications include an ambient temperature range of -20 to +60 °C and an interrupting capacity of up to 200A. The operating area has an IP40 degree of protection.
Typical applications for this circuit breaker include battery chargers, consumer products, power supplies, and motors. It is approved by UL, CSA, VDE, and EN 60934 (IEC 60934).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 25A.
It supports 240VAC and 28VDC.
It uses panel mounting.
The operating temperature range is -20 to +60 °C.
The interrupting capacity is 200A for 8-30A ratings and 1000A or 2000A for specific voltage/current combinations.
The degree of protection for the operating area is IP40.
