| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Voltage Rating |

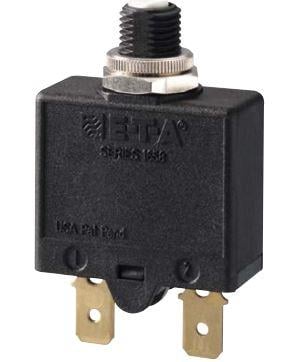

This E-T-A 1658-F01-00-P10-D01-12A is a thermal overcurrent circuit breaker with a 12A current rating, suitable for use in a variety of applications requiring reliable circuit protection.
Key electrical specifications include a maximum AC voltage rating of 240V and a DC voltage rating of 28V. The breaker type is thermal, and it features a manual reset actuator.
Designed for panel mounting, this single-pole circuit breaker offers a cost-effective solution meeting international requirements. It is built with no exposed metal parts that could become current-carrying, except for the terminals.
Typical applications for this series include battery chargers, consumer products, power supplies, and motors. The breaker is approved by UL, CSA, and VDE.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 12A.
It supports 240 VAC and 28 VDC.
This circuit breaker is designed for panel mounting.
It features a push-to-reset actuator.
The operating temperature range is -20 to +60 °C, with a maximum of +40 °C for currents up to 7A.
