| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

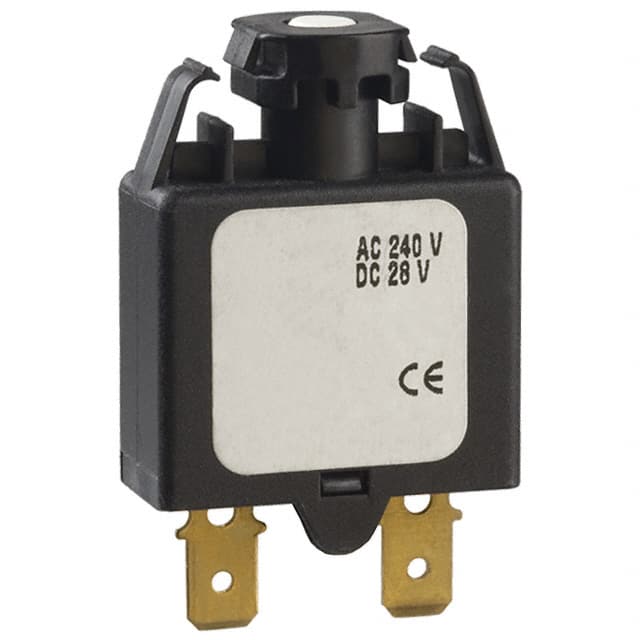

This E-T-A 1658-F01-00-P10-8A is a single-pole thermal circuit breaker designed for overcurrent protection. It operates at AC voltages up to 240V and DC voltages up to 28V, with a specific current rating of 8A.
The breaker offers a high interrupting capacity of 2,000A at AC 240V and DC 28V, ensuring safety in fault conditions. It features a manual push-to-reset actuator and a panel mount design for easy integration into control panels and equipment.
Environmental specifications include an operating temperature range of -20°C to +60°C and an IP40 degree of protection for the operating area. The device is built to meet international requirements, offering a cost-effective solution for applications such as battery chargers, consumer products, power supplies, and motors.
Key technical data includes a dielectric strength of 3,000V AC and an insulation resistance greater than 100 MΩ at DC 500V. The breaker is also approved by UL, CSA, and VDE.
The breaker is rated for 240V AC and 28V DC.
Panel mount.
-20 to +60°C.
2,000A at 240V AC (for 5-16A range), 2,000A at 120V AC (for 18-30A range), and 2,000A at 28V DC.
UL1077, CSA C22.2 No 235, IEC 60934, and VDE (EN 60934).
Push to Reset.
1 pole.
