| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

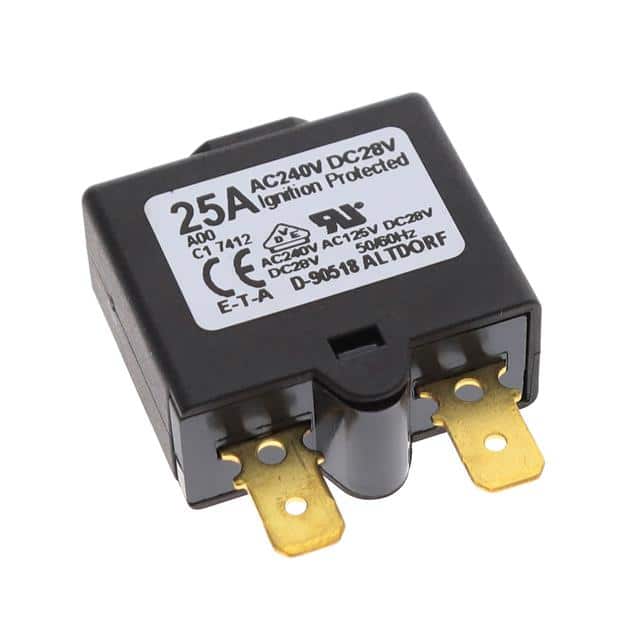

This E-T-A 1658-A00-00-P10-25A is a thermal overcurrent circuit breaker designed for reliable circuit protection. It operates with a current rating of 25A and supports voltage ratings of up to 240V AC and 28V DC.
The breaker features a single pole configuration and an automatic reset mechanism, making it suitable for applications requiring continuous operation after a fault condition is cleared. Its panel mount design facilitates easy integration into various systems and enclosures.
Key technical data includes an interrupting capacity of up to 2000A, an operating temperature range of -20°C to +60°C, and an ingress protection rating of IP40 for the operating area. The device is built to meet international requirements, offering a cost-effective solution for battery chargers, consumer products, power supplies, and motors.
Compliance certifications include UL, CSA, VDE, and EN 60934 (IEC 60934) approval. The construction ensures no exposed metal parts become current-carrying, enhancing safety.
The circuit breaker is rated for 240V AC and 28V DC.
The current rating is 25A.
The interrupting capacity varies by voltage and current: up to 2000A at 32V DC for 5-30A models, and up to 1000A at 240V AC for 5-16A models.
The operating temperature range is -20°C to +60°C.
It uses an automatic reset actuator.
The breaker is panel mount.
The typical life is 1,000 operations at 2x rated current for both inductive and resistive loads.
