| Category | |
| Manufacturer Name | |
| Cable Diameter | |
| Cable Exit | |
| Cable Type | |
| Color | |
| Conductor Cross-Section (AWG) | |
| Connector Type | |
| Contact Material | |
| Contact Surface Material | |
| Flammability Class | |
| Housing Material | |
| Ingress Protection | |
| Insertion/Withdrawal Cycles | |
| Lead Style | |
| Length | |
| Military Grade | |
| Number of Positions | |
| Operating Temperature Range | |
| Pollution Degree | |
| Rated Current | |
| Rated Voltage | |
| Ratings | |
| Shielding | |
| Termination |

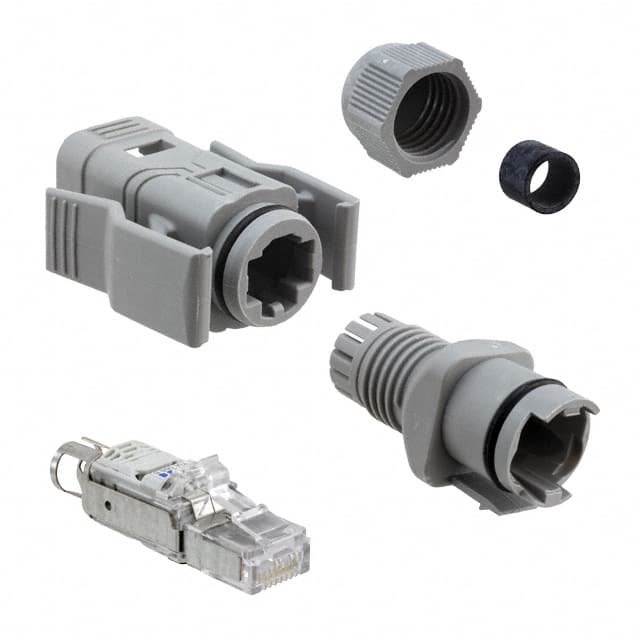

The Phoenix Contact 1656990 is an RJ45 plug connector designed for reliable data transmission in harsh environments. It features a shielded 8p8c configuration and is rated for Cat5e/CAT5 performance according to TIA 568B. The connector achieves IP67 ingress protection, making it dust-tight and waterproof.
Termination is via QUICKON fast connection technology (IDC), accepting solid or stranded conductors from AWG 26 to 22 and cable diameters from 5 mm to 8 mm. Electrical ratings include 1.75 A rated current and 50 V rated voltage, with a pollution degree of 2.
The housing is made of PA with UL 94 V0 flammability rating. Contact surfaces are gold over nickel on a copper alloy base. Operating temperature range is -20°C to 70°C, and the connector withstands at least 1000 insertion/withdrawal cycles. Color is Military gray RAL 7042.
8 positions (8p8c, RJ45/Ethernet).
1.75 A.
50 V.
IP67 (dust tight, waterproof).
Cat5e (also CAT5 per IEC 11801:2002).
Yes, shielded.
IDC (QUICKON fast connection technology).
