| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
81,700 pcs
|
81700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

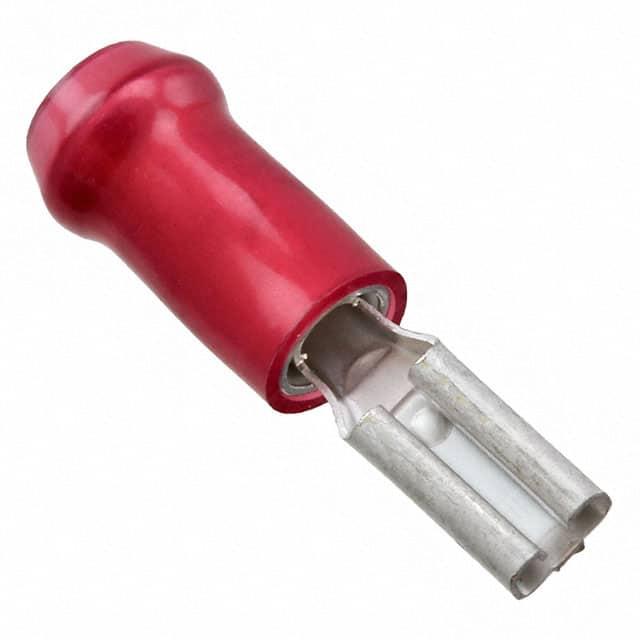

The TE Connectivity 165565-1 is a standard female quick connect receptacle designed for 16-22 AWG wire. It features a 0.110" (2.79mm) tab width, 0.020" (0.51mm) tab thickness, and 0.248" (6.30mm) tab length. The contact is made of brass with a tin finish, and the non-mating end is insulated. The overall length is 19.81mm (0.780").
This terminal uses crimp termination and is designed for free hanging (in-line) mounting. The insulation color is red. It is suitable for a wide range of power and signal interconnection applications where a reliable, quick-disconnect connection is needed.
The product is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). Compliance data is unverified.
The 165565-1 accepts 16-22 AWG wire.
The tab width is 0.110" (2.79mm) and tab thickness is 0.020" (0.51mm).
The contact is made of brass with a tin finish.
It uses crimp termination.
Yes, the non-mating end is insulated. The insulation color is red.
