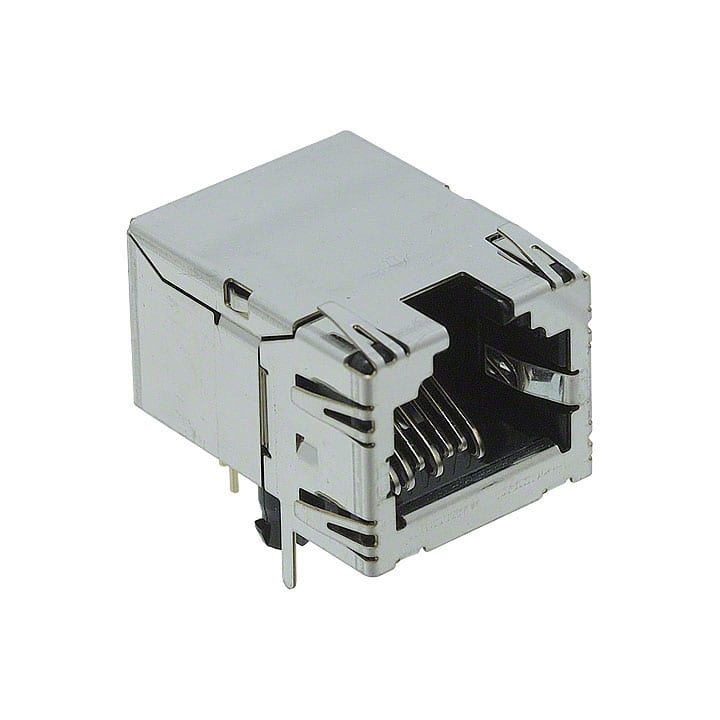

1653087 Phoenix Contact RJ45 female insert, 8 positions, Cat6 rated, shielded with EMI finger, right angle solder pins, through hole mounting.
Mfr Part #:

1653087

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact RJ45 female insert, 8 positions, Cat6 rated, shielded with EMI finger, right angle solder pins, through hole mounting.
✓ Total Stock: 45 pcs

1653087 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1653087 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
Industrial Grade
Ingress Protection
LED Color
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Operating Temperature
Orientation
Rated Current
Ratings
Shielding
Tab Direction
Termination
View Similar Products (0)

1653087 Description

Short technical summary and product information.

The Phoenix Contact VS-08-BU-RJ45-6/LH-1 (MPN 1653087) is a Cat6-rated RJ45 modular jack designed for PCB assembly. It features 8 positions (8P8C), a shielded housing with EMI finger, and a right-angle orientation with through-hole solder termination. The contact carrier is PBT with a V0 flammability rating, and the contacts are gold-plated over nickel on a copper alloy base. This jack supports ≥750 insertion/withdrawal cycles, is rated for 1 A current, and operates from -25°C to 80°C. It includes a board lock for secure mounting and is rated IP20 for indoor use.

1653087 Quick Information

Product Type: Modular Connector Jack
Series: VS-08-BU-RJ45-6/LH-1
Canonical Name: Phoenix Contact VS-08-BU-RJ45-6/LH-1 RJ45 Female Insert, 8P8C, Cat6, Shielded, Right Angle, Through Hole
Subcategory: RJ45

1653087 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1653087 Features

  • Cat6 rated RJ45 jack for Ethernet.
  • Shielded with EMI finger for noise reduction.
  • Right angle orientation with through hole solder.
  • Gold plated contacts for reliable connection.
  • Board lock feature for secure PCB mounting.

1653087 Applications

  • Used in industrial Ethernet networking equipment.
  • Ideal for PCB mountable data interface ports.
  • Suitable for Cat6 structured cabling systems.
  • Applied in control panels and automation devices.

1653087 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the mounting type of this connector?

Through Hole, right angle (90°) orientation.

What is the current rating of this RJ45 jack?

1 A.

Is this connector shielded?

Yes, it is shielded and includes an EMI finger.

What is the IP rating?

IP20.
