| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
230 pcs
|
230 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Insulation | |
| Insulation Diameter | |
| Length | |
| Pin Diameter | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Wire Gauge |

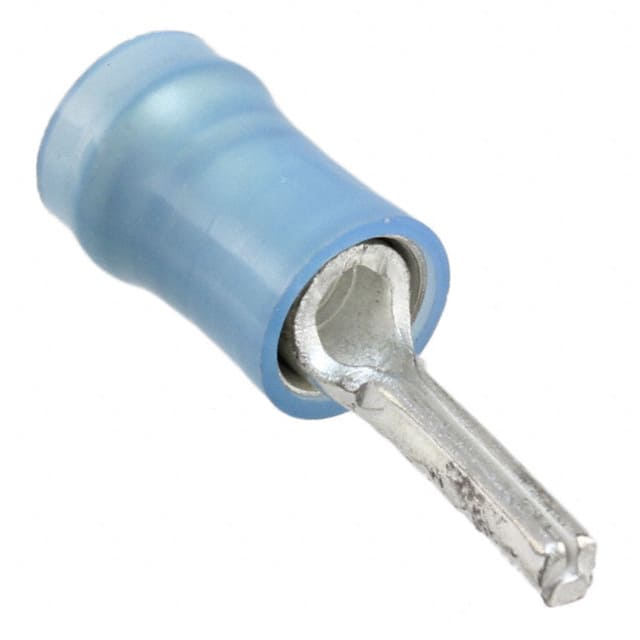

The TE Connectivity 165046 is a PIDG (Pre-Insulated Diamond Grip) wire pin terminal designed for 14-16 AWG wire. It features a blue insulation sleeve and uses a crimp termination method.
The terminal has a pin diameter of 1.80 mm (0.071") and an overall length of 20.29 mm (0.799"). The insulation diameter is 4.29 mm (0.169"). It includes a serrated termination for enhanced grip and reliability.
This terminal is suitable for wire-to-board or wire-to-wire connections where a pin terminal is required. The PIDG design provides strain relief and insulation support. It is commonly used in industrial control, automotive, and general wiring applications.
14-16 AWG.
Crimp.
1.80 mm (0.071").
Yes, it has blue insulation.
20.29 mm (0.799").
Yes, serrated termination for improved grip.
4.29 mm (0.169").
