164X11809X

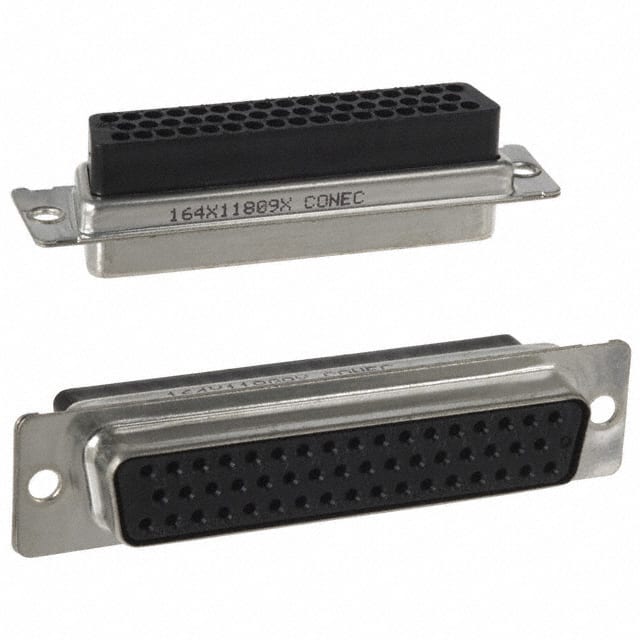

The Conec 164X11809X is a D-Sub receptacle housing designed for female contacts. It has 50 positions arranged in 3 rows, with a shell size of 5 (DD, D). The connector is free hanging (in-line) mounted, making it suitable for cable-to-cable or cable-to-panel applications where a panel mount is not required. The housing features a steel shell with tin plating, providing durability and corrosion resistance. The shell finish thickness is 320µin (8.13µm). It includes a housing/shell (unthreaded) flange feature. The connector is rated IP20 for protection against solid objects. The product is RoHS3 compliant (unverified) and has a moisture sensitivity level of 1 (unlimited). The part is intended for use with signal contacts.

This housing is suitable for applications requiring a robust D-Sub connection. The 50-position layout with 3 rows allows for high-density signal connections. The free hanging mounting provides flexibility in cable assembly. The steel shell with tin plating ensures good electrical conductivity and mechanical strength. The IP20 rating indicates basic protection against touch and solid objects. The connector is designed for use in various electronic systems.

The product is manufactured by Conec, a known connector manufacturer. The part number 164X11809X is a cross reference to DigiKey part 626-1072-ND. The housing is compatible with standard D-Sub female contacts (not included). For proper assembly, ensure the use of appropriate tooling.
