| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

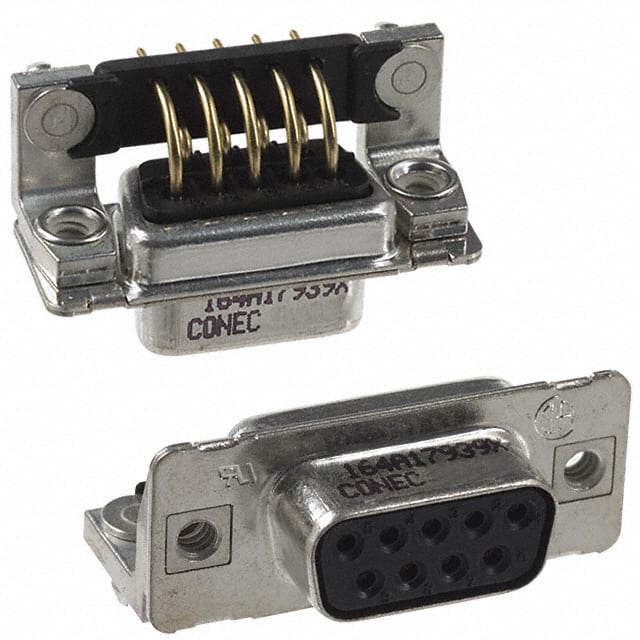

The Conec 164A17939X is a 9-position D-Sub receptacle designed for signal applications. It features a D-Sub style connector with female sockets arranged in 2 rows. The connector is mounted via through-hole right angle configuration and terminated with solder contacts. Contact finish is gold flash, ensuring reliable electrical performance. The current rating is 7.5 A. The shell is made of steel with tin plating, and the flange feature uses housing/shell (4-40) threads. A board lock feature aids in PCB retention during assembly. The backset spacing is 0.283 in (7.20 mm). The connector is rated IP20 for basic ingress protection and has a UL94 V-0 flammability rating for the insulator material. This connector is suitable for various data and signal interconnection needs in industrial and commercial equipment.
9 positions.
7.5 A.
Through hole, right angle.
Gold flash.
Steel, tin plated.
Yes, it features board lock.
UL94 V-0.
