| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Ingress Protection | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style |

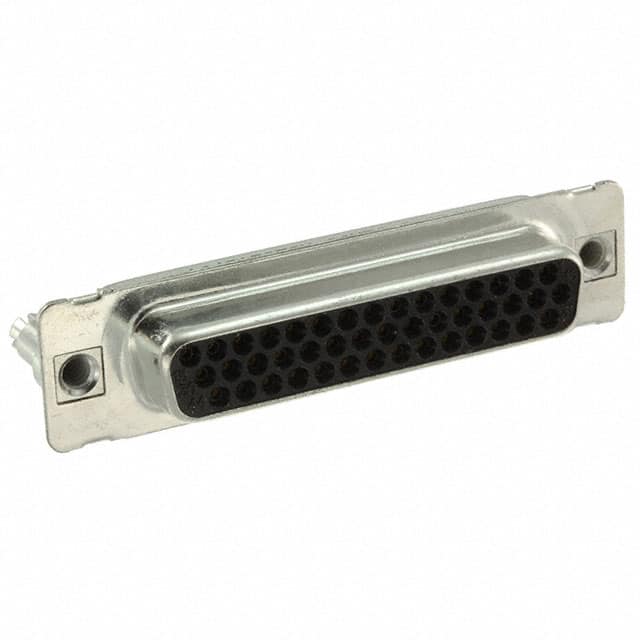

The Conec 164A17379X is a D-Sub High Density receptacle designed for signal applications. It features 44 positions across 3 rows, with a high-density connector style.
The receptacle has a current rating of 3A and utilizes a gold contact finish with a thickness of 0.203µm. The mounting type is through hole, and the termination style is solder. The shell material is steel with a tin plating, and it includes a board lock feature for secure mounting.
Environmental specifications include an IP20 ingress protection rating and a material flammability rating of UL94 V-0. The shell size is designated as 3 (DB, B) High Density. This connector is suitable for various electronic applications requiring reliable signal connections.
Additional features include a board side flange with a 4-40 thread for mounting. The connector is designed for robust performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.00 | $50.00 |
| 10+ | $25.00 | $45.00 |
| 100+ | $15.00 | $35.00 |
| 1,000+ | $8.00 | $25.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 44 positions.
The current rating is 3A.
It uses signal contacts.
The mounting type is through hole.
The contact finish is gold.
The ingress protection is IP20.
