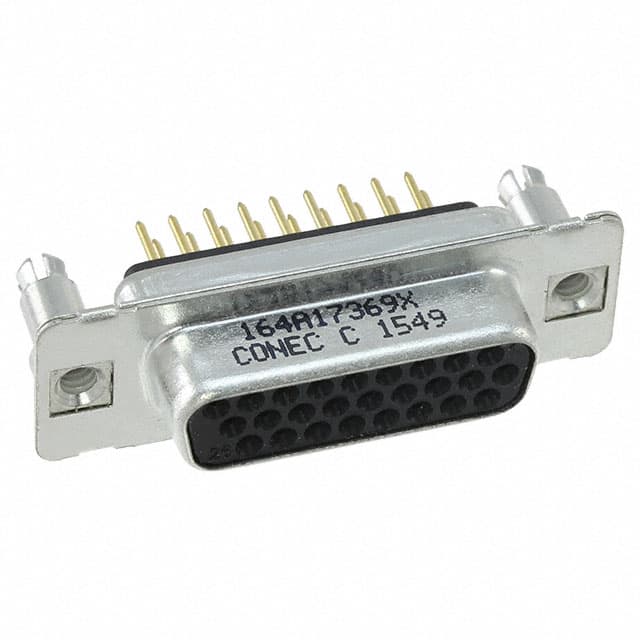

164A17369X The Conec 164A17369X is a D-Sub HD receptacle with 26 positions and 3 rows. It features gold plated signal contacts and through hole mounting.
Mfr Part #:

164A17369X

Available from 1 distributors
Mfr Name: Conec
Conec
The Conec 164A17369X is a D-Sub HD receptacle with 26 positions and 3 rows. It features gold plated signal contacts and through hole mounting.
✓ Total Stock: 19 pcs

164A17369X Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
19 pcs
On Request
19 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

164A17369X Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Current Rating
Current Rating (Amps)
Features
Flange Feature
Ingress Protection
Material Flammability Rating
Mounting Type
Number of Positions
Number of Rows
Shell Material, Finish
Shell Size, Connector Layout
Termination
Termination Style
View Similar Products (0)

164A17369X Description

Short technical summary and product information.

The Conec 164A17369X is a high-density D-Sub receptacle designed for signal applications. It features 26 positions arranged in 3 rows, with female sockets for connections.



The connector has a current rating of 3A and a gold contact finish with a thickness of 0.203µm. The mounting type is through hole, and the termination style is solder. The shell is made of steel with a tin plating.



This D-Sub connector has an ingress protection rating of IP20 and a material flammability rating of UL94 V-0. It also includes a board lock feature for secure mounting.



The shell size and connector layout are designated as 2 (DA, A) High Density, and it has a board side flange feature with a 4-40 thread size.

164A17369X Quick Information

Product Type: D-Sub Connector Assembly
Series: 164A
Canonical Name: Conec 164A17369X D-Sub HD Receptacle, 26 Positions
Subcategory: Receptacle

164A17369X Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

164A17369X Features

  • 26 positions in 3 rows
  • Gold plated signal contacts
  • 3A current rating
  • Through hole solder mounting
  • IP20 ingress protection rating

164A17369X Applications

  • Suitable for signal connections
  • High-density D-Sub applications
  • Secure board mounting required
  • Industrial equipment interfaces

164A17369X FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating for the Conec 164A17369X?

The current rating is 3A.

How many positions does the Conec 164A17369X D-Sub connector have?

The connector has 26 positions.

What type of mounting is used for the 164A17369X?

It uses through hole mounting.

What is the contact finish on the 164A17369X?

The contact finish is gold.

What is the ingress protection rating of this D-Sub connector?

The ingress protection rating is IP20.
