| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Ingress Protection | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style |

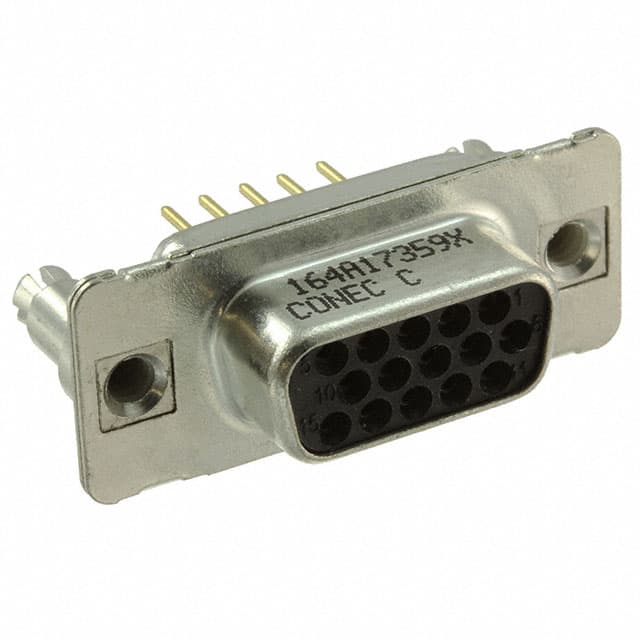

The Conec 164A17359X is a high-density D-Sub receptacle connector designed for reliable signal connections. It features 15 positions arranged in 3 rows, with female sockets for signal contacts. The contacts are finished with gold plating, offering good conductivity and durability, with a thickness of 0.203µm. This connector has a current rating of 3A.
Designed for through-hole mounting, the 164A17359X includes a board lock feature for enhanced mechanical stability. The shell is constructed from steel with a tin plating, and the connector offers an IP20 ingress protection rating. Its material flammability rating is UL94 V-0, indicating a high standard of safety.
This connector is suitable for applications requiring a compact and robust D-Sub connection. The high-density configuration allows for more connections in a smaller footprint compared to standard D-Sub connectors. The vertical solder termination style is typical for board-mounted applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.00 | $13.00 |
| 10+ | $8.00 | $11.00 |
| 100+ | $6.00 | $9.00 |
| 1,000+ | $4.00 | $7.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Conec 164A17359X is a high-density D-Sub receptacle connector.
The connector has 15 positions.
The current rating is 3A.
It uses through hole mounting.
The contact finish is gold.
The ingress protection rating is IP20.
The material flammability rating is UL94 V-0.
