| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,145 pcs
|
3145 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Termination Type |

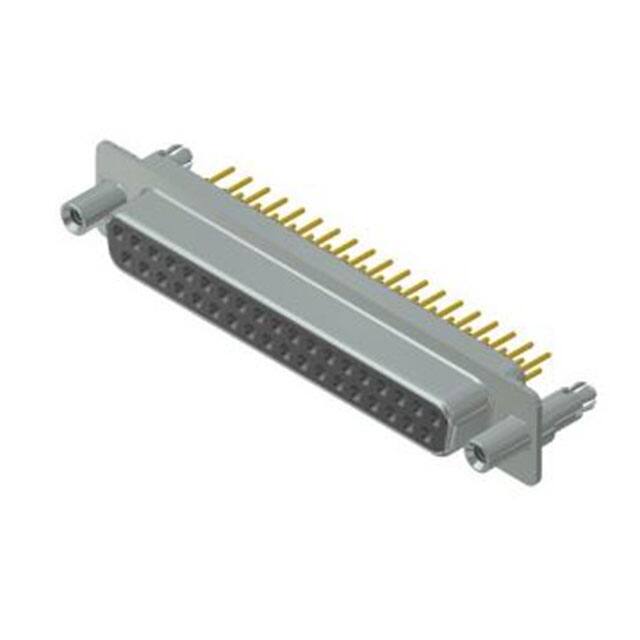

The Conec 164A16699X is a 37-position D-Sub receptacle connector designed for vertical through hole mounting. It features female socket contacts with gold flash finish and a steel, tin-plated shell. The connector uses a shell size of 4 (DC, C) and includes a mating side flange with 4-40 threaded inserts for secure panel mounting.
This connector is rated for 7.5A per contact and is intended for signal applications. The insulator material has a UL94 V-0 flammability rating, and the connector carries an IP20 ingress protection rating. A board lock feature aids in retention during soldering.
The connector terminates via solder to a through hole PCB. The contact arrangement is 37 positions in 2 rows, making it suitable for parallel interface or data communication applications requiring a moderate density of signal lines.
Receptacle, Female Sockets; D-Sub style.
37 positions arranged in 2 rows.
Through hole mounting with solder termination.
7.5A per contact.
Gold flash.
Steel, tin plated.
UL94 V-0.
