| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Ingress Protection | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style |

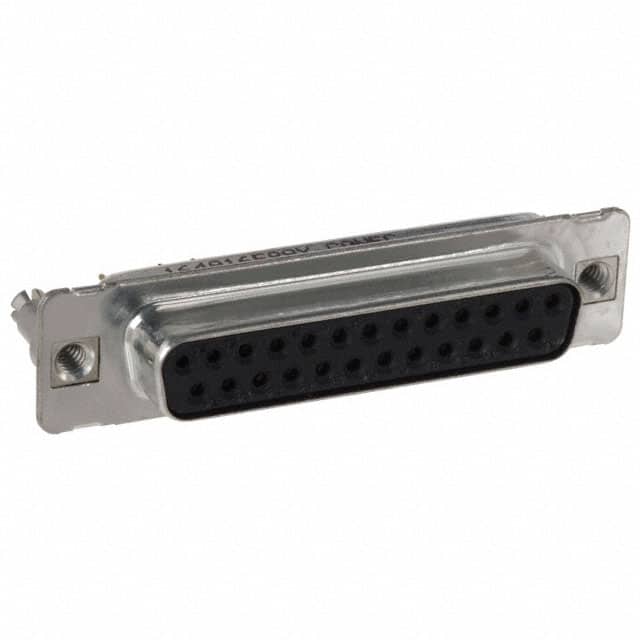

The Conec 164A16589X is a D-Sub connector receptacle designed for signal applications. It features 25 positions arranged in 2 rows, with a vertical through-hole mounting type and solder termination.
The connector has a current rating of 7.5A and a gold contact finish with a thickness of 0.203µm. The shell is constructed from steel and is tin-plated. It includes a board lock feature and a board-side flange with a 4-40 thread size.
This D-Sub connector assembly has an IP20 ingress protection rating and meets UL94 V-0 flammability rating. The shell size is 3 (DB, B).
The Conec 164A16589X is suitable for various applications requiring reliable signal connections within industrial and electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.11 | $13.88 |
| 10+ | $8.09 | $11.10 |
| 100+ | $6.07 | $8.31 |
| 1,000+ | $4.05 | $5.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Conec 164A16589X has 25 positions.
The 164A16589X uses signal contacts.
The current rating is 7.5A.
The contact finish is Gold.
It is a through hole mounting type.
The ingress protection rating is IP20.
The material flammability rating is UL94 V-0.
