| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Mounting Type | |
| Number of Positions |

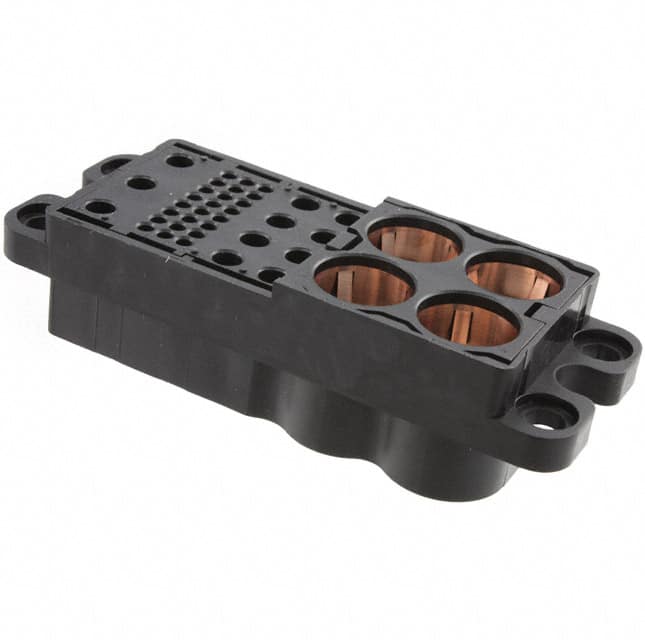

The TE Connectivity 1648552-1 is a drawer-style connector housing designed for use with male pins in backplane applications. It provides 39 total positions, comprising 24 signal contacts and 15 power contacts, allowing mixed signal and power distribution in a single connector. The housing is panel mounted, enabling secure installation in equipment enclosures. Its black color is standard for rack-mounted systems.
The drawer connector style facilitates blind mate and unmate operations, common in modular equipment where modules slide into a chassis. This housing is intended as a component of a larger connector system; male pins (not included) are required to complete the connection.
Typical applications include backplane interconnect systems in telecommunications, data centers, and industrial control equipment where reliable, high-density connections are needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $68.43 | $68.43 |
| 10+ | $58.17 | $58.17 |
| 25+ | $54.53 | $54.53 |
| 50+ | $51.93 | $51.93 |
| 100+ | $49.45 | $49.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
39 positions (24 signal + 15 power).
Panel mount.
Black.
Housing for male pins, drawer style, plug.
Plug (connector usage).
