| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
386 pcs
|
386 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows |

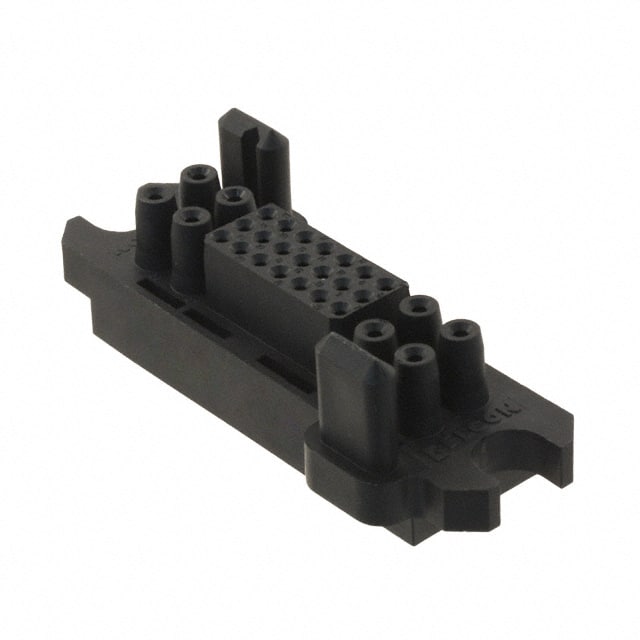

The TE Connectivity 1648207-1 is a backplane connector housing designed for drawer style lower receptacles. It accommodates female sockets with a total of 29 positions, comprising 21 signal contacts and 8 power contacts arranged in 3 rows. This housing is designed for panel mount installation, providing a secure connection in backplane applications. The black housing includes a guide pin feature for proper alignment during mating. This connector housing is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited). It is suitable for use in various electronic systems requiring reliable backplane interconnections. The housing is part of the TE Connectivity drawer connector family, typically used in applications where modular plug-in units are required. The 3-row configuration allows for high-density signal and power distribution. The panel mount design ensures stability in vibration-prone environments. The guide pin assists in blind mating, reducing insertion force and preventing damage. This product is cross-referenced as Digi-Key part number A36265-ND.
| Qty | Low | High |
|---|---|---|
| 90+ | $11.38 | $11.38 |
| 135+ | $10.75 | $10.75 |
| 270+ | $9.80 | $9.80 |
| 540+ | $9.17 | $9.17 |
| 1,035+ | $8.41 | $8.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 29 positions (21 signal + 8 power).
Panel mount.
3 rows.
Black.
Yes, it is listed as RoHS3 compliant, but this is unverified low-confidence data.
MSL 1 (unlimited), unverified low-confidence.
Yes, it includes a guide pin.
