| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Type |

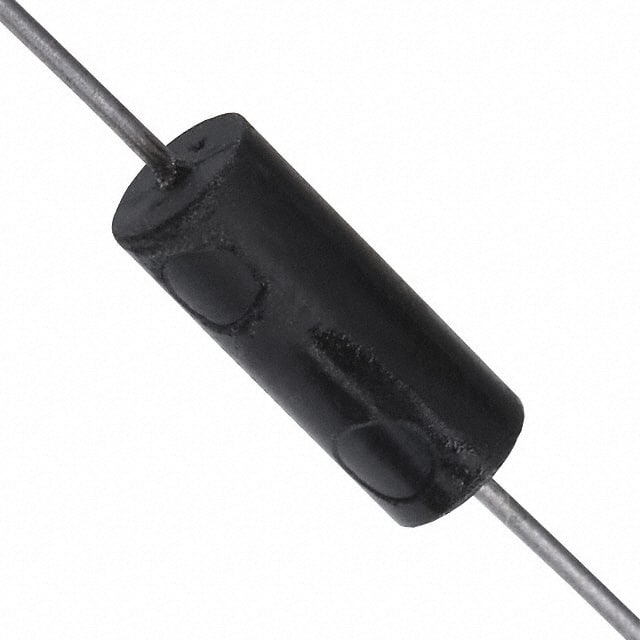

The 1641-471K is a fixed inductor from API Delevan Inc. featuring a molded, shielded construction. It offers an inductance of 470 nH with ±10% tolerance and is rated for a maximum DC current of 580 mA.
Its DC resistance is 250 mOhm maximum, enabling efficient low-power applications. The component uses a phenolic core material and achieves a Q factor of 44 at 25 MHz, with a self-resonant frequency of 235 MHz, making it suitable for RF circuits.
It is housed in an axial through-hole package measuring 0.162" diameter by 0.410" length (4.11mm x 10.41mm) and operates over a wide temperature range from -55°C to 105°C.
This inductor is commonly used in filtering, tuning, and impedance matching applications where stable performance and high reliability are required.
470 nH.
580 mA.
250 mOhm maximum.
235 MHz.
Axial through-hole.
44.
-55°C to 105°C.
