| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Ingress Protection | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

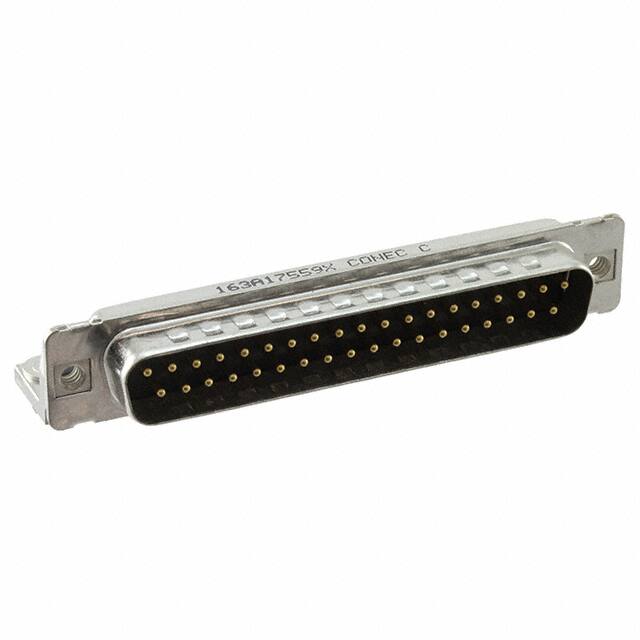

The Conec 163A17559X is a 37-position D-Sub plug connector featuring male pins arranged in 2 rows. It uses a shell size 4 (DC, C) layout and is terminated via solder to a through-hole right angle mounting style, designed for board edge applications.
The connector is rated for 7.5 A per contact and has an IP20 ingress protection rating. The shell is made of steel with tin plating, and the insulator material meets UL94 V-0 flammability rating. Contacts are gold flash finished. Additional features include board lock, grounding indents, and mounting brackets for secure PCB attachment.
Plug, Male Pins; D-Sub style.
37 positions arranged in 2 rows.
Board edge, through hole, right angle mounting with solder termination.
7.5 A per contact.
IP20.
UL94 V-0.
