| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

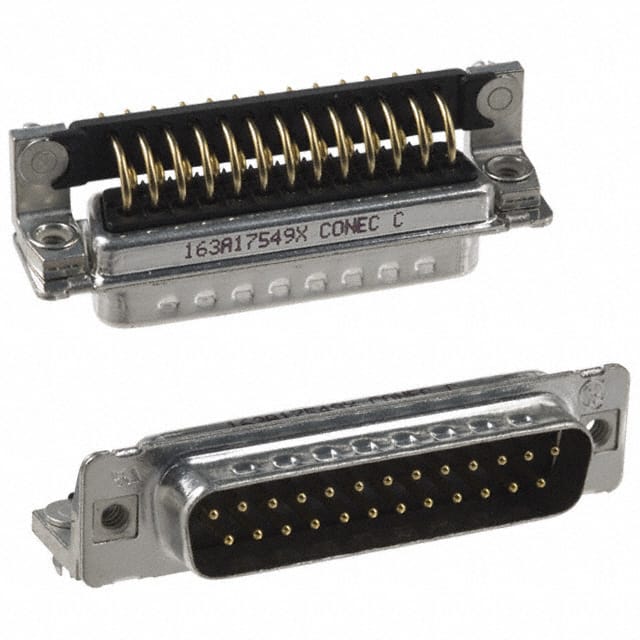

The Conec 163A17549X is a D-Sub plug connector featuring 25 male pin contacts arranged in two rows. The connector uses a right angle solder termination for board edge through-hole mounting, making it suitable for compact PCB layouts. Contacts have a gold flash finish for reliable signal connections, and the steel shell is tin plated for durability. The shell size is 3 (DB, B) and includes a flange with 4-40 threaded inserts for secure mating. Additional features include board locks, grounding indents, and mounting brackets to enhance mechanical stability. The connector is rated for 7.5 A per contact and has an IP20 ingress protection rating. The insulator material has a UL94 V-0 flammability rating. This connector is RoHS3 compliant and has an MSL of 1 (unlimited). Typical applications include data communication interfaces, industrial control systems, and test equipment requiring a reliable D-Sub connection.
25 positions.
7.5 A per contact.
Board edge, through hole, right angle.
3 (DB, B).
Gold flash.
IP20.
Yes, listed as RoHS3 compliant (low confidence).
