| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

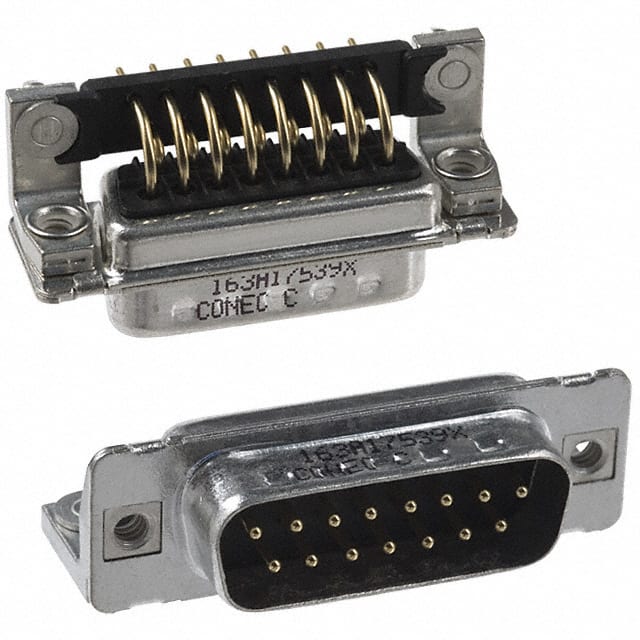

The Conec 163A17539X is a D-Sub connector plug with male pins, featuring 15 positions in 2 rows. It has a shell size 2 (DA, A) layout and is designed for board edge, through-hole, right angle mounting with solder termination. The contacts are signal type with gold flash finish for reliable conductivity. The connector is rated for 7.5A continuous current. It includes features such as board locks, grounding indents, and mounting brackets. The backset spacing is 0.283 inches (7.20mm). The shell is made of steel with tin plating. The connector has an IP20 ingress protection rating and is rated UL94 V-0 for flammability. It is compliant with RoHS3 and REACH (unverified).
15 positions.
7.5A per contact.
Board edge, through hole, right angle.
Gold flash.
Steel, tin plated.
IP20.
UL94 V-0.
