| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style |

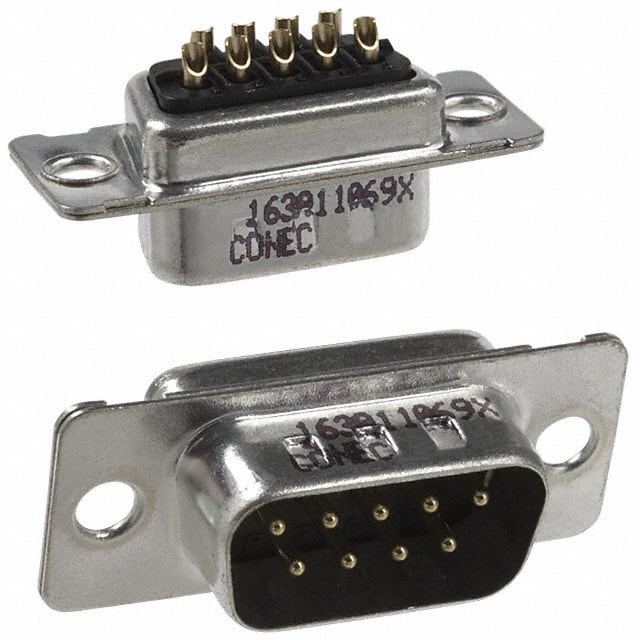

The Conec 163A11069X is a 9-position D-Sub plug connector designed for signal applications. It features male pins with gold contact finish (8.00µin) for reliable low-level signal transmission. The connector uses solder cup termination for easy wire attachment and is free hanging (in-line) mounted, making it suitable for cable assembly applications.
The shell is made of steel with tin plating and includes grounding indents for improved EMI performance. The connector layout is DE-9 (shell size 1) with two rows of contacts. It is rated for 7.5A current and has an IP20 ingress protection rating. The insulator material meets UL94 V-0 flammability rating.
Plug, Male Pins, D-Sub style.
9 positions arranged in 2 rows.
Solder cup termination.
7.5A.
Free Hanging (In-Line).
IP20.
UL94 V-0.
