| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,560 pcs
|
4560 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Material | |
| Shielding | |
| Storage Temperature | |
| Termination | |
| Termination Style | |
| Voltage Rating |

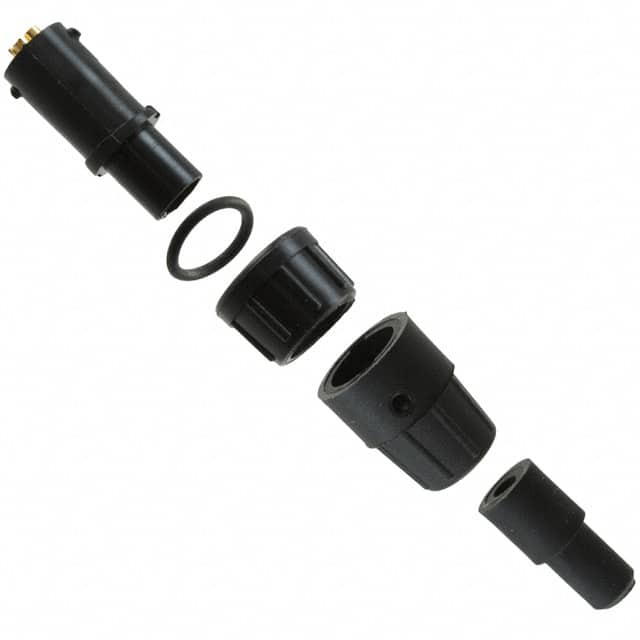

This circular connector plug from Conxall/Switchcraft features 3 male pin contacts with gold plating for reliable signal integrity. It uses solder cup termination and a bayonet lock fastening system with keyed orientation to prevent mismating. The thermoplastic shell is black and unshielded, with a backshell for cable support. Cable opening accommodates 0.180 to 0.200 inch (4.57 to 5.08 mm) diameter cable.
Electrical ratings are 7.5A current and 600VAC/DC voltage. The connector is sealed to IP67 for dust tight and waterproof operation. Operating temperature range is -40°C to 85°C. The material flammability rating is UL94 HB.
Mounting is free hanging (in-line) with solder cup termination. This connector is part of the Mini-Con-X series designed for harsh environments.
3 positions.
7.5A.
600VAC/DC.
Free hanging (in-line).
IP67 - dust tight and waterproof.
-40°C to 85°C.
Solder cup.
