| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

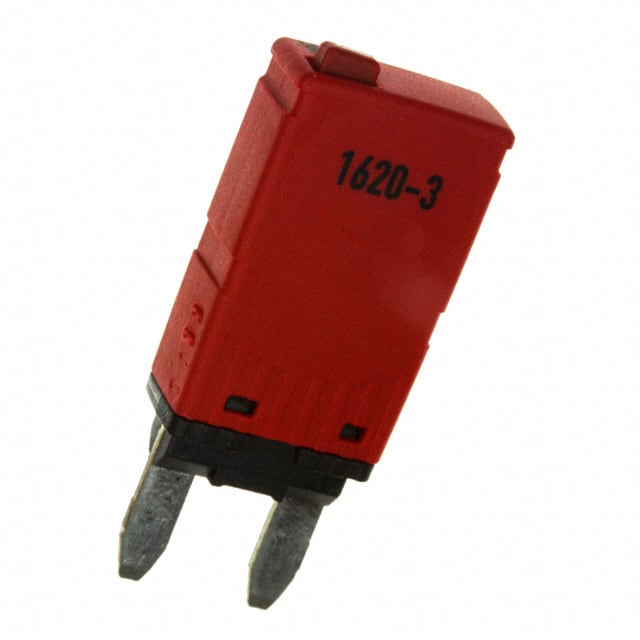

The E-T-A 1620-3-10A is a single-pole, thermal miniaturized circuit breaker (Mini-CBE) specifically engineered for automotive applications. It fits into fuse blocks designed to ISO 8820-3, Type F, and meets the requirements of SAE J553.
This circuit breaker has a current rating of 10A and a maximum voltage rating of 29V. It features a push-to-reset actuator and is suitable for protecting electrical systems in passenger cars, trucks, buses, and watercraft.
The device operates within an ambient temperature range of -40 to +85 °C. It offers various reset options, including automatic reset for DC 12V systems and an open circuit version with modified reset to SAE standards. The circuit breaker will reset after the load is removed, making it ideal for installation in inaccessible locations.
With a degree of protection of IP40 for the operating area and IP00 for the terminal area, the 1620-3-10A is built to withstand environmental stresses including vibration, shock, corrosion, and humidity as per SAE J553 standards.
The current rating is 10 A.
The maximum voltage rating is 29 V DC.
It is a thermal circuit breaker.
The ambient temperature range is -40 to +85 °C.
It is mounted using a holder (panel mount).
The operating area has IP40 or IP50 protection, and the terminal area is IP00.
It has a push-to-reset actuator.
