Mfr Part #:

1610-H2-30A

Mfr Name: ETA

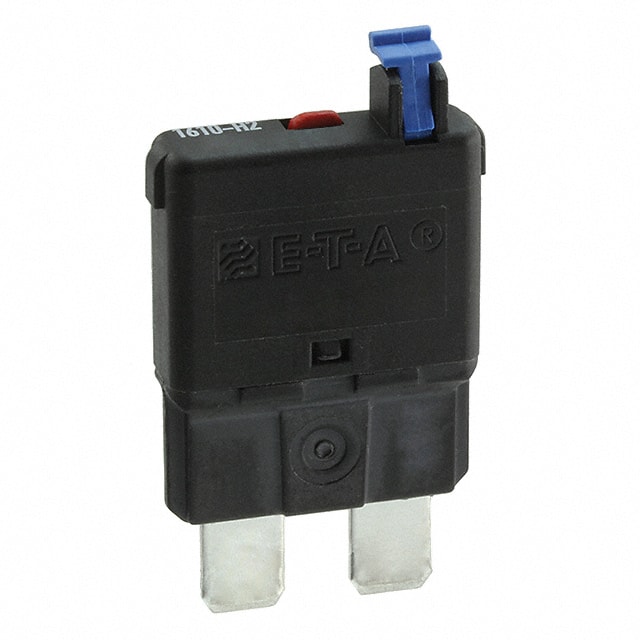

The E-T-A 1610-H2-30A is a single-pole, thermal circuit breaker designed for automotive applications. It features a 30A current rating and a 32VDC voltage rating.

Stock on Request

1610-H2-30A Description

Short technical summary and product information.

The E-T-A 1610-H2-30A is a miniaturized, single-pole, press-to-reset, cycling trip-free thermal circuit breaker. It is designed for automotive fuse block installation and extends circuit breaker benefits to cost-critical applications.

Key specifications include a 30A current rating and a maximum voltage rating of 32VDC. The breaker type is thermal, with a push-to-reset actuator. It is approved by UL1500.

Environmental specifications include an operating temperature range of -40°C to +85°C and a degree of protection of IP30 for the operating area and IP00 for the terminal area. The circuit breaker has undergone shock and vibration testing according to IEC standards.

This circuit breaker is suitable for extra-low voltage wiring systems on all types of vehicles and marine craft. Its compact design and thermal trip mechanism make it ideal for protecting automotive circuits.

1610-H2-30A Quick Information

Product Type: Thermal Circuit Breaker

Series: 1610-H2

Canonical Name: E-T-A 1610-H2-30A Thermal Automotive Circuit Breaker

Subcategory: Thermal

1610-H2-30A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1610-H2-30A Features

Single-pole thermal circuit breaker.
30A current rating.
32VDC maximum voltage rating.
Push-to-reset actuator.
UL1500 approved.

1610-H2-30A Applications

Automotive fuse block installation.
Extra-low voltage wiring systems.
Vehicles and marine craft.
Cost-critical automotive applications.

1610-H2-30A FAQs

7 frequently asked questions generated from this part’s specifications.

What is the voltage rating of the E-T-A 1610-H2-30A?

32VDC

What is the current rating of the 1610-H2-30A?

30A

What is the operating temperature range for this circuit breaker?

-40°C to +85°C

What degree of protection does the 1610-H2-30A offer?

IP30 on the operating area and IP00 on the terminal area.

What approvals does the 1610-H2-30A have?

UL1500

What is the mounting type for this circuit breaker?

Holder mounting

What type of actuator does the 1610-H2-30A use?

Push to Reset

Category	Circuit Breakers
Manufacturer Name	ETA
Actuator Type	Push to Reset
Ambient Temperature	[{'min': -40, 'max': 85, 'unit': '°C', 'display_value': '-40 to +85 °C'}]
Approval Agency	UL1500
Breaker Type	Thermal
Current Rating	30A
Current Rating (Amps)	30A
Illumination	None
Mounting Type	Holder
Number of Poles	1
Voltage Rating	32 VDC
