| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

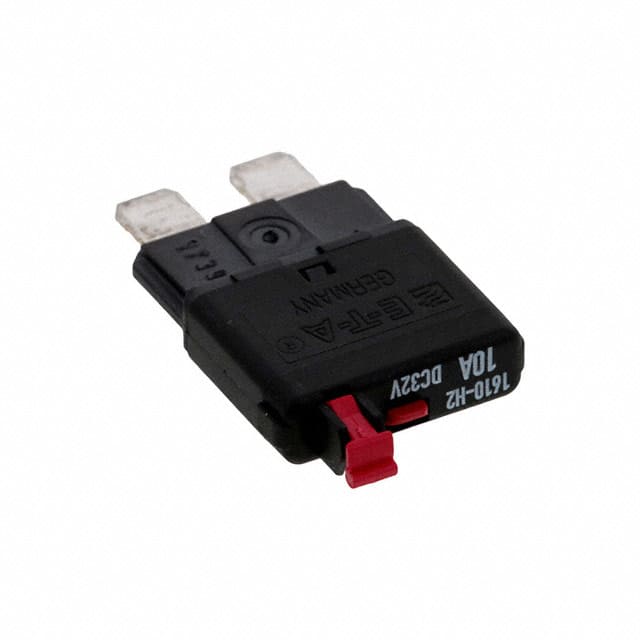

The E-T-A 1610-H2-10A is a miniaturized, single-pole, thermal circuit breaker designed for automotive fuse block installation. It offers circuit breaker performance and convenience for cost-critical applications.
Key electrical specifications include a 10A current rating and a maximum voltage rating of 32VDC. The breaker type is thermal, and it features a push-to-reset actuator for manual operation. It is approved by UL1500.
This circuit breaker operates within an ambient temperature range of -40°C to +85°C and has a degree of protection of IP30. Mechanical specifications include resistance to vibration up to 10g and shock up to 50g. It is designed for holder mounting.
Typical applications include extra-low voltage wiring systems on vehicles and marine craft. The circuit breaker is designed for reliable operation in demanding automotive environments.
32 VDC.
Holder mounting.
-40 to +85 °C.
Service: 300 operations at ≤50 A; Ultimate: ≥1 break operation at 2000 A.
UL1500.
IP30.
Approximately 5 g.
