| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

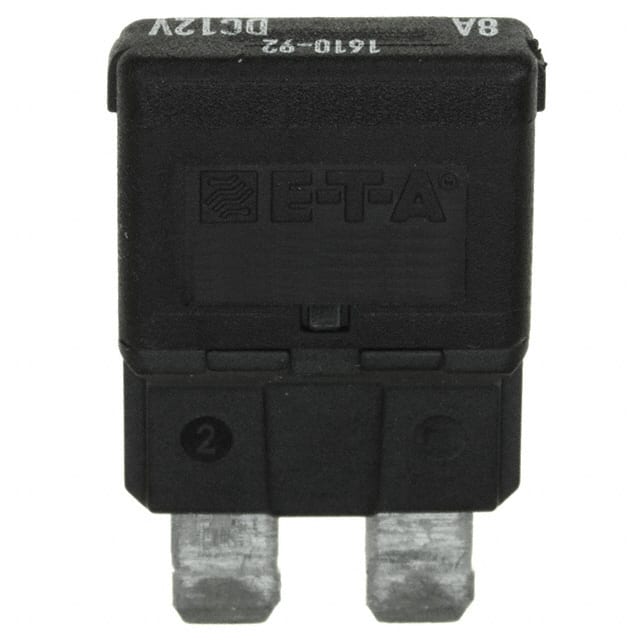

The E-T-A 1610-92-8A is a miniaturized, single-pole, press-to-reset thermal circuit breaker designed for automotive fuse block installation. It offers circuit breaker performance and convenience for cost-critical applications.
This model operates at a maximum voltage rating of 14.5 V DC and has a current rating of 8A. It features an automatic reset actuator and is approved by UL1500. The circuit breaker is designed for extra-low voltage wiring systems on vehicles and marine craft.
Environmental specifications include an operating temperature range of -40°C to +85°C and an ingress protection rating of IP30 for the operating area. Mechanical specifications include resistance to vibration (10g) and shock (50g). The device has a mass of approximately 5g.
Typical applications include various automotive systems where reliable circuit protection is essential. The version 1616 is specifically available for the automotive industry, with current ratings corresponding to blade fuses.
14.5 V
-40 °C to 85 °C
It uses a holder mounting type.
The reset period is a maximum of 15 seconds at 23 °C.
It supports 300 service operations at up to 50 A and can break at least one operation at 2,000 A.
Yes, the unit holds UL1500 approval agency certification.
