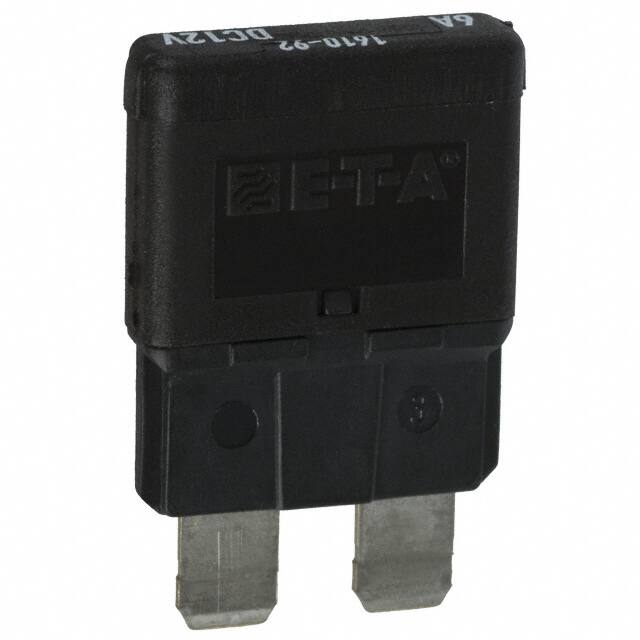

The E-T-A 1610-92-6A is a miniaturized, single-pole, press-to-reset thermal circuit breaker designed for automotive fuse block installation. It offers circuit breaker performance and convenience for cost-critical applications.
This model features a 6A current rating and a maximum voltage rating of 14.5V. It is equipped with an automatic reset actuator and holds UL1500 approval. The breaker is designed for extra-low voltage wiring systems found in vehicles and marine craft.
Technical specifications include a service short-circuit breaking capacity of 300 operations at up to 50A and an ultimate short-circuit breaking capacity of at least 1 break operation at 2,000A. Environmental testing includes resistance to shock (50g), vibration (10g), corrosion (96 hours salt mist), and humidity (240 hours at 95% RH).
The circuit breaker is housed in a compact package with a mounting type of 'Holder'. It operates within an ambient temperature range of -40°C to +85°C. The terminal area has an IP00 degree of protection.
14.5 V
6 A
Thermal circuit breaker with automatic reset.
1 pole.
-40°C to +85°C
Holder mounting.
UL1500 approved.
