| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

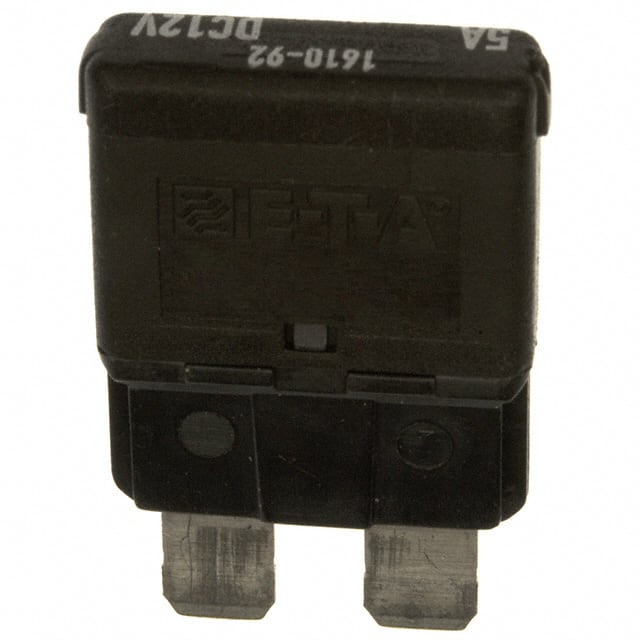

This E-T-A 1610-92-5A is a miniaturized, single-pole, press-to-reset, cycling trip-free thermal circuit breaker. It is designed for automotive fuse block installation and extends circuit breaker performance to cost-critical applications.
Key technical specifications include a 5A current rating and a maximum voltage rating of 14.5V DC. It features an automatic reset actuator and is UL1500 approved. The operating temperature range is -40°C to +85°C.
Typical applications include extra low voltage wiring systems on all types of vehicles and marine craft. The circuit breaker has a service short-circuit breaking capacity of 300 operations at ≤ 50A and an ultimate short-circuit breaking capacity of at least 1 break operation at 2,000A.
The device is designed for holder mounting and has an operating area degree of protection of IP30. It meets stringent environmental standards, including 96 hours of corrosion resistance and 240 hours of humidity resistance.
14.5 V.
-40 to +85 °C.
5 A.
1.
Automatic reset.
Service: 300 operations at ≤50 A; ultimate: ≥1 break operation at 2,000 A.
UL1500.
