| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

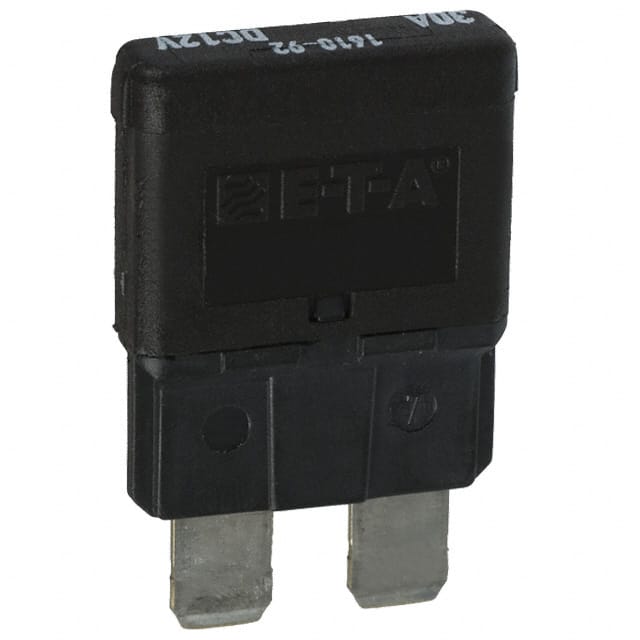

The E-T-A 1610-92-30A is a miniaturized, single-pole, press-to-reset, cycling trip-free thermal circuit breaker. It is designed for automotive fuse block installation and offers cost-effective circuit protection for extra-low voltage wiring systems on vehicles and marine craft.
Key technical specifications include a maximum voltage rating of 32V DC, a current rating of 30A, and a typical voltage drop of less than 150mV. The breaker type is thermal, with an automatic reset actuator. It has a UL1500 approval agency rating.
Environmental and mechanical specifications include an operating temperature range of -40°C to +85°C, an ingress protection rating of IP30 for the operating area, and resistance to vibration and shock according to IEC standards. The mass of the unit is approximately 5g.
This circuit breaker is suitable for applications requiring reliable protection in automotive and marine environments. Its compact size and thermal trip mechanism make it a versatile component for various low-voltage systems.
14.5V DC nominal, maximum 32V DC.
-40°C to +85°C (-40°F to +185°F).
30 A continuous.
Automatic reset.
Service: 300 operations at ≤50A. Ultimate: at least 1 break operation at 2000A.
UL1500 approved.
IP30.
