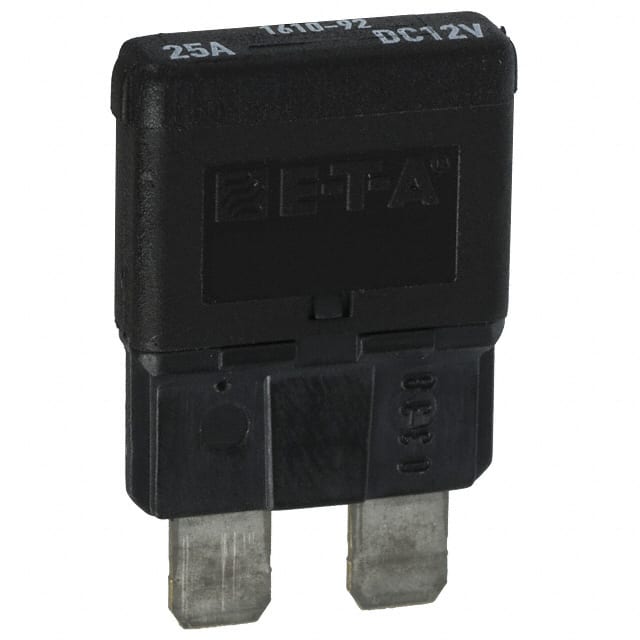

The E-T-A 1610-92-25A is a miniaturized, single-pole, press-to-reset cycling trip-free thermal circuit breaker designed for automotive fuse block installation. It offers circuit breaker performance and convenience for cost-critical applications.
Key electrical specifications include a 25A current rating and a 14.5V voltage rating. The breaker type is thermal, with a single pole configuration and an automatic reset actuator. It has a service short-circuit breaking capacity of 300 operations at ≤ 50A and an ultimate short-circuit breaking capacity of at least 3 break operations at 150A or 1 break operation at 2,000A.
Environmental and mechanical specifications include an operating temperature range of -40°C to +85°C, a degree of protection of IP54 for the operating area, and resistance to vibration (10g) and shock (50g). It also meets IEC standards for corrosion and humidity resistance.
This circuit breaker is suitable for extra-low voltage wiring systems on all types of vehicles and marine craft. It is mounted using a holder and is approved by UL1500.
The current rating is 25A.
The voltage rating is 14.5V.
It is a thermal circuit breaker.
It has 1 pole.
Yes, it features an automatic reset actuator.
The operating temperature range is -40°C to +85°C.
The degree of protection for the operating area is IP54.
