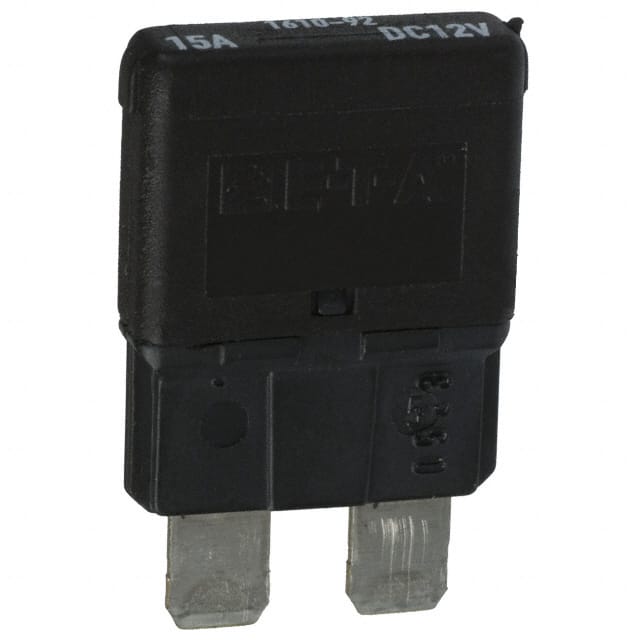

The E-T-A 1610-92-15A is a miniaturized, single-pole, press-to-reset thermal circuit breaker designed for automotive fuse block installations. It offers circuit breaker performance and convenience for cost-critical applications.
This specific model, the 1610-92-15A, is rated for a maximum voltage of 14.5V and a current of 15A. It features an automatic reset mechanism, making it suitable for various automotive and marine extra-low voltage wiring systems. The breaker is designed to withstand environmental conditions including vibration, shock, and humidity.
Key technical data includes a service short-circuit breaking capacity of 300 operations at ≤ 50A and an ultimate short-circuit breaking capacity of ≥ 1 break operation at 2,000A. The operating temperature range is -40°C to +85°C. The ingress protection rating for the operating area is IP54.
With UL1500 approval, this circuit breaker is suitable for automotive applications where ignition protection is required. Its compact size and thermal trip-free design ensure reliable circuit protection.
The maximum operating voltage is 14.5 V DC.
The nominal current rating is 15 A.
The ambient operating temperature range is -40 to +85 °C.
The circuit breaker is designed for holder mounting.
It is a thermal circuit breaker with automatic reset.
The circuit breaker is UL1500 approved.
The maximum reset period is 15 seconds at 23 °C.
