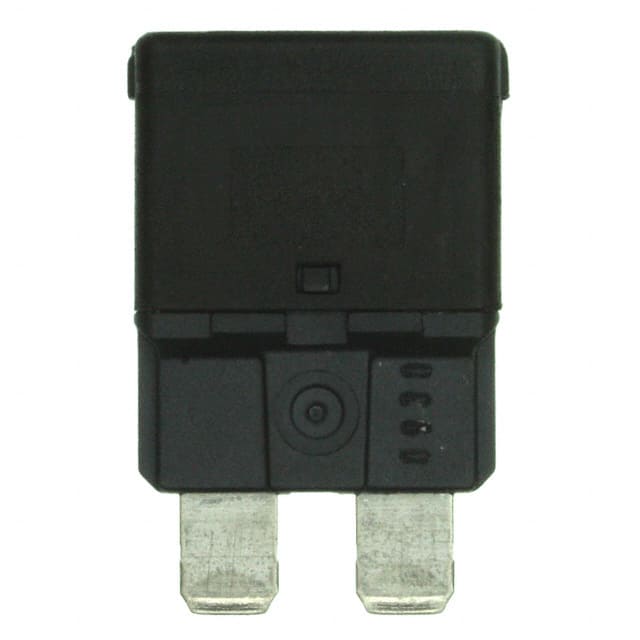

The E-T-A 1610-92-10A is a miniaturized, single-pole, press-to-reset, cycling trip-free thermal circuit breaker. It is designed for automotive fuse block installation and offers circuit breaker performance for cost-critical applications.
This model features a 10A current rating and a maximum voltage rating of 14.5V DC. It has an automatic reset actuator type and is approved by UL1500. The operating temperature range is -40°C to +85°C.
Typical applications include extra-low voltage wiring systems on all types of vehicles and marine craft. The circuit breaker is housed in a compact form factor with a mass of approximately 5g.
Environmental specifications include an operating area degree of protection of IP30 and a terminal area of IP00. It has undergone vibration, shock, corrosion, and humidity testing according to IEC standards.
The current rating is 10A.
The maximum voltage rating is 14.5V.
Yes, it features an automatic reset actuator type.
The operating temperature range is -40°C to +85°C.
Typical applications include extra-low voltage wiring systems on vehicles and marine craft.
The degree of protection for the operating area is IP30.
