| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

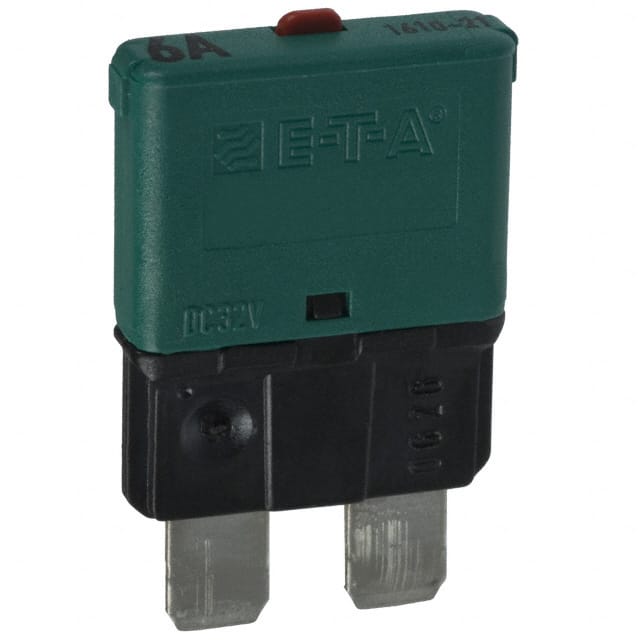

The E-T-A 1610-21-6A is a miniaturized, single-pole, press-to-reset, cycling trip-free thermal circuit breaker. It is designed for installation in automotive fuse blocks and is suitable for extra-low voltage wiring systems on vehicles and marine craft.
Key technical specifications include a current rating of 6A and a maximum voltage rating of 32VDC. The breaker type is thermal, with a push-to-reset actuator. It is approved by UL1500.
Environmental specifications include an operating temperature range of -40°C to +85°C and an operating area degree of protection of IP30. The circuit breaker has undergone vibration, shock, corrosion, and humidity testing according to IEC standards.
This circuit breaker is designed for cost-critical applications where circuit breaker performance and convenience are desired. It features a compact design with a mass of approximately 5g.
The current rating is 6A.
The maximum voltage rating is 32VDC.
It is a thermal circuit breaker.
It features a push-to-reset actuator.
It is designed for extra-low voltage wiring systems on all types of vehicles and marine craft.
The operating temperature range is -40°C to +85°C.
The degree of protection for the operating area is IP30.
