| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

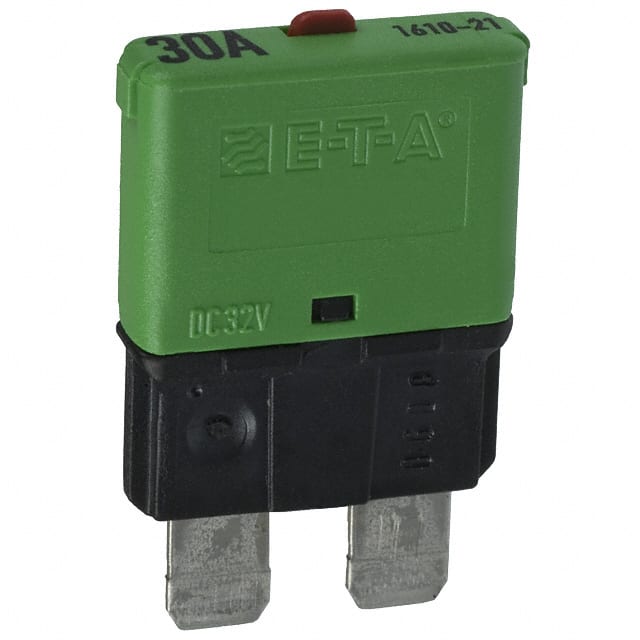

The E-T-A 1610-21-30A is a miniaturized, single-pole, press-to-reset thermal circuit breaker. It is designed for automotive fuse block installation and offers circuit breaker performance in cost-critical applications. This model has a current rating of 30A and a maximum voltage rating of 32VDC.
Key technical data includes a thermal breaker type, a 30A current rating, and a 32VDC voltage rating. It is approved by UL1500 and features a push-to-reset actuator. The circuit breaker operates within an ambient temperature range of -40°C to 85°C.
Environmental specifications include a degree of protection of IP30 for the operating area and IP00 for the terminal area. It has undergone vibration, shock, corrosion, and humidity testing according to IEC standards. The mounting type is specified as a holder.
This circuit breaker is suitable for extra-low voltage wiring systems on all types of vehicles and marine craft. Its compact design and automotive-specific features make it a reliable choice for protection in demanding environments.
The current rating is 30A.
The maximum voltage rating is 32VDC.
It is a thermal circuit breaker.
It features a push-to-reset actuator.
The ambient temperature range is -40°C to 85°C.
The operating area has an IP30 degree of protection, and the terminal area has an IP00 degree of protection.
