| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

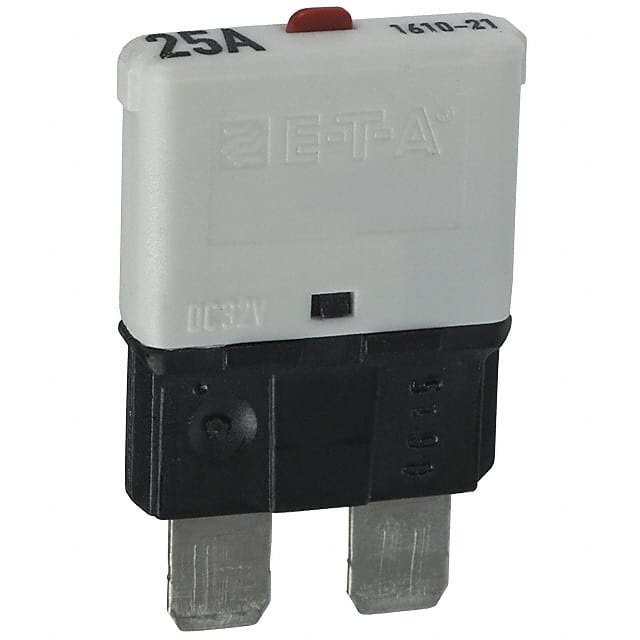

The E-T-A 1610-21-25A is a miniaturized, single-pole, press-to-reset, cycling trip-free thermal circuit breaker. It is designed for automotive fuse block installation and extends circuit breaker benefits to cost-critical applications.
Key electrical specifications include a 25A current rating and a maximum voltage rating of 32VDC. The breaker type is thermal, and it features a push-to-reset actuator. It has undergone UL1500 approval.
Environmental and mechanical specifications include an operating temperature range of -40°C to 85°C and an ingress protection rating of IP30 for the operating area. The circuit breaker has passed vibration, shock, corrosion, and humidity tests according to relevant IEC standards.
Typical applications include extra-low voltage wiring systems on all types of vehicles and marine craft. The mounting type is a holder.
The current rating is 25A.
The maximum voltage rating is 32VDC.
It is a thermal circuit breaker.
It is a single-pole circuit breaker.
The actuator type is push to reset.
The operating temperature range is -40°C to 85°C.
Typical applications include extra-low voltage wiring systems on all types of vehicles and marine craft.
