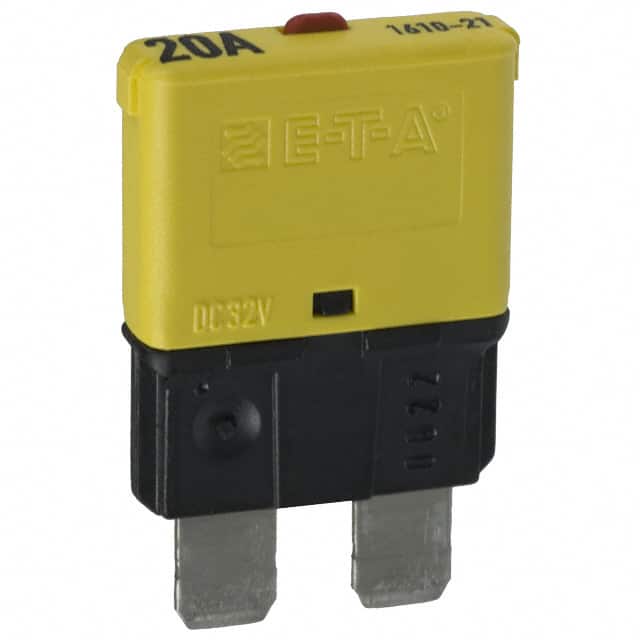

1610-21-20A The E-T-A 1610-21-20A is a single-pole, thermal circuit breaker designed for automotive applications. It offers a 20A current rating and a 32VDC voltage rating.
Mfr Part #:

1610-21-20A

Mfr Name: ETA
ETA
The E-T-A 1610-21-20A is a single-pole, thermal circuit breaker designed for automotive applications. It offers a 20A current rating and a 32VDC voltage rating.
Stock on Request

1610-21-20A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Ambient Temperature
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating

1610-21-20A Description

Short technical summary and product information.

The E-T-A 1610-21-20A is a miniaturized, single-pole, press-to-reset, cycling trip-free thermal circuit breaker. It is designed for automotive fuse block installation and extends circuit breaker performance to cost-critical applications.



Key electrical specifications include a 20A current rating and a maximum voltage rating of 32VDC. The breaker type is thermal, and it features a push-to-reset actuator. It is approved by UL1500, making it suitable for ignition-protected applications.



This circuit breaker operates within an ambient temperature range of -40°C to 85°C. It has a degree of protection of IP30 in the operating area. The breaker is designed for extra-low voltage wiring systems on vehicles and marine craft.



Mounting is achieved via a holder. The circuit breaker has a service short-circuit breaking capacity of 300 operations at ≤ 50A and an ultimate short-circuit breaking capacity of >= 3 break operations at 150A, or >= 1 break operation at 2,000A. It also meets vibration, shock, corrosion, and humidity standards.

1610-21-20A Quick Information

Product Type: Thermal Circuit Breaker
Canonical Name: E-T-A 1610-21-20A Thermal Circuit Breaker
Subcategory: Thermal Circuit Breaker

1610-21-20A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1610-21-20A Features

  • Single-pole thermal circuit breaker
  • 20A current rating
  • 32VDC maximum voltage rating
  • Push-to-reset actuator
  • UL1500 approved for ignition protection

1610-21-20A Applications

  • Automotive fuse block installation
  • Vehicle wiring systems
  • Marine craft wiring systems
  • Cost-critical applications

1610-21-20A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the E-T-A 1610-21-20A circuit breaker?

The maximum voltage rating for the 1610-21-20A is 32VDC.

What is the current rating of this thermal circuit breaker?

The current rating is 20A.

What type of circuit breaker is the 1610-21-20A?

It is a thermal circuit breaker.

How many poles does the 1610-21-20A have?

It is a single-pole circuit breaker.

What is the operating temperature range for this circuit breaker?

The ambient temperature range is -40°C to 85°C.

What is the ingress protection rating?

The degree of protection for the operating area is IP30.

What is the mounting type for the 1610-21-20A?

The mounting type is Holder.
