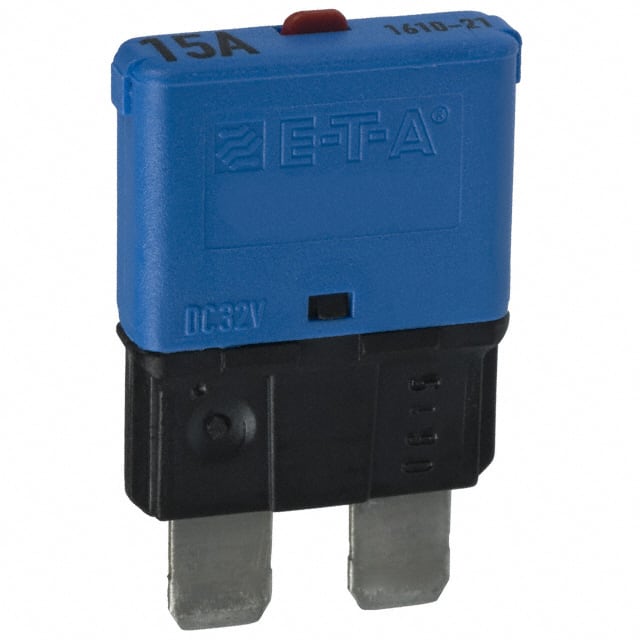

1610-21-15A The E-T-A 1610-21-15A is a single-pole, thermal circuit breaker rated for 15A and 32VDC. It features a push-to-reset actuator and UL1500 approval.
Mfr Part #:

1610-21-15A

Mfr Name: ETA
ETA
The E-T-A 1610-21-15A is a single-pole, thermal circuit breaker rated for 15A and 32VDC. It features a push-to-reset actuator and UL1500 approval.
Stock on Request

1610-21-15A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Ambient Temperature
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
SVHC Present
Voltage Rating

1610-21-15A Description

Short technical summary and product information.

The E-T-A 1610-21-15A is a miniaturized, single-pole, press-to-reset, cycling trip-free thermal circuit breaker designed for automotive fuse block installation. It offers circuit breaker performance and convenience for cost-critical applications.



Key electrical specifications include a current rating of 15A and a maximum voltage rating of 32VDC. The breaker type is thermal, with a push-to-reset actuator. It has undergone UL1500 approval.



Environmental and mechanical specifications include an operating temperature range of -40 to 85°C, a degree of protection of IP30 for the operating area, and resistance to vibration, shock, corrosion, and humidity according to IEC standards. The breaker has a mass of approximately 5g.



Typical applications include extra-low voltage wiring systems on all types of vehicles and marine craft. This version is designed for automotive industry use, with current ratings corresponding to blade fuses.

1610-21-15A Quick Information

Product Type: Thermal Circuit Breaker
Series: 1610
Canonical Name: E-T-A 1610-21-15A Thermal Automotive Circuit Breaker
Subcategory: Thermal Circuit Breaker

1610-21-15A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1610-21-15A Features

  • Single-pole thermal circuit breaker.
  • 15A current rating.
  • 32VDC maximum voltage rating.
  • Push-to-reset actuator.
  • UL1500 approved for automotive use.

1610-21-15A Applications

  • Automotive fuse block installation.
  • Vehicle wiring systems.
  • Marine craft wiring systems.
  • Cost-critical applications.

1610-21-15A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the E-T-A 1610-21-15A circuit breaker?

The current rating is 15A.

What is the maximum voltage rating for the 1610-21-15A circuit breaker?

The maximum voltage rating is 32VDC.

What type of circuit breaker is the E-T-A 1610-21-15A?

It is a thermal circuit breaker.

How many poles does the 1610-21-15A circuit breaker have?

It has a single pole.

What is the actuator type for this circuit breaker?

The actuator type is push to reset.

What is the operating temperature range for this circuit breaker?

The operating temperature range is -40 to 85 °C.

What is the degree of protection for the operating area?

The degree of protection for the operating area is IP30.
