| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

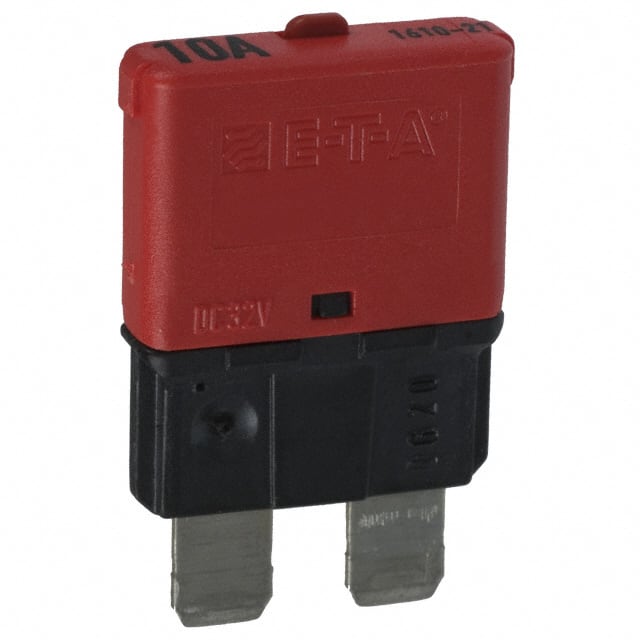

The E-T-A 1610-21-10A is a miniaturized, single-pole, press-to-reset, cycling trip-free thermal circuit breaker. It is designed for automotive fuse block installation and is suitable for extra-low voltage wiring systems on vehicles and marine craft.
This circuit breaker features a 10A current rating and a maximum voltage rating of 32VDC. It has a thermal breaker type and a push-to-reset actuator. The device is UL1500 approved, indicating suitability for ignition-protected applications.
With an ambient temperature range of -40 to 85°C, it is built to withstand harsh environmental conditions. The circuit breaker also exhibits resistance to shock (50g) and vibration (10g), making it robust for mobile applications. Its degree of protection is IP30.
The 1610-21-10A has a service short-circuit breaking capacity of 300 operations at up to 50A and an ultimate short-circuit breaking capacity of at least 1 operation at 2,000A. It is mounted using a holder.
The current rating is 10A.
The maximum voltage rating is 32VDC.
It features a push-to-reset actuator.
The operating temperature range is -40 to 85°C.
The degree of protection is IP30.
The mounting type is Holder.
It is approved by UL1500.
