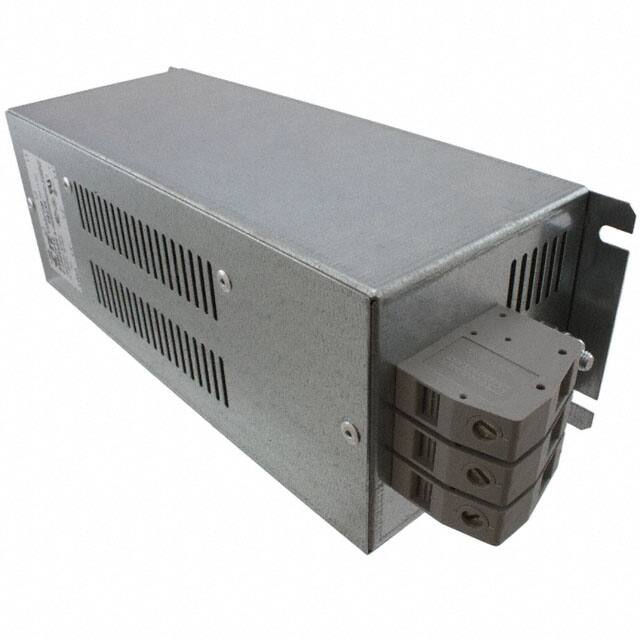

1609989-5 Three phase power line filter rated at 55A and 277V. Chassis mount with terminal block connections.
Mfr Part #:

1609989-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Three phase power line filter rated at 55A and 277V. Chassis mount with terminal block connections.
✓ Total Stock: 30 pcs
$ Price Range: $318.14

1609989-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1609989-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Configuration
Current
Filter Type
Frequency
Lead Style
Mounting Type
Operating Temperature
Tape & Reel
Termination Style
Voltage
View Similar Products (0)

1609989-5 Description

Short technical summary and product information.

TE Connectivity 1609989-5 is a three phase (Delta) power line filter designed for inverters and power drive systems. It features a two-stage filter configuration for effective EMI suppression.



Electrical specifications include a rated current of 55A, rated voltage of 277V, and frequency range of 50/60Hz. The operating temperature range is -10°C to 50°C.



Mechanically, the filter is chassis mounted with terminal block termination. It holds UR and VDE approvals and is RoHS3 compliant and REACH unaffected.

1609989-5 Quick Information

Product Type: Power Line Filter Module
Series: Corcom
Canonical Name: Three Phase Power Line Filter, 55A, 277V, Chassis Mount
Subcategory: Three Phase Filter

1609989-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1609989-5 Estimated Pricing

Qty Low High
1+ $318.14 $318.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

1609989-5 Features

  • Rated for 55A continuous current operation.
  • Designed for three phase Delta systems.
  • Two-stage filter for effective EMI suppression.
  • Chassis mount with terminal block connections.
  • Approved by UR and VDE agencies.

1609989-5 Applications

  • Used in industrial inverter applications.
  • Suitable for power drive systems.
  • Ideal for three phase motor drives.

1609989-5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated current of the 1609989-5?

55A.

What is the rated voltage?

277V.

What is the operating temperature range?

-10°C to 50°C.

Is the 1609989-5 RoHS compliant?

Yes, RoHS3 compliant (unverified).

What type of filter is this?

Three phase (Delta) two-stage power line filter.

What mounting style does it use?

Chassis mount with terminal block.

What applications is it designed for?

Inverters and power drive systems.
