160887-4 TE Connectivity 160887-4 is a non-insulated male quick connect tab with a 0.110" (2.79mm) tab width, designed for 17-20 AWG wire and crimp termination.
Mfr Part #:

160887-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 160887-4 is a non-insulated male quick connect tab with a 0.110" (2.79mm) tab width, designed for 17-20 AWG wire and crimp termination.
✓ Total Stock: 6,000 pcs

160887-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

160887-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Gender
Halogen Free
Insulation
Lead Spacing
Lead Style
Length
Mounting Type
SVHC Present
Storage Temperature
Tab Length
Tab Thickness
Tab Width
Tape & Reel
Terminal Type
Termination
Termination Style
Wire Gauge
View Similar Products (0)

160887-4 Description

Short technical summary and product information.

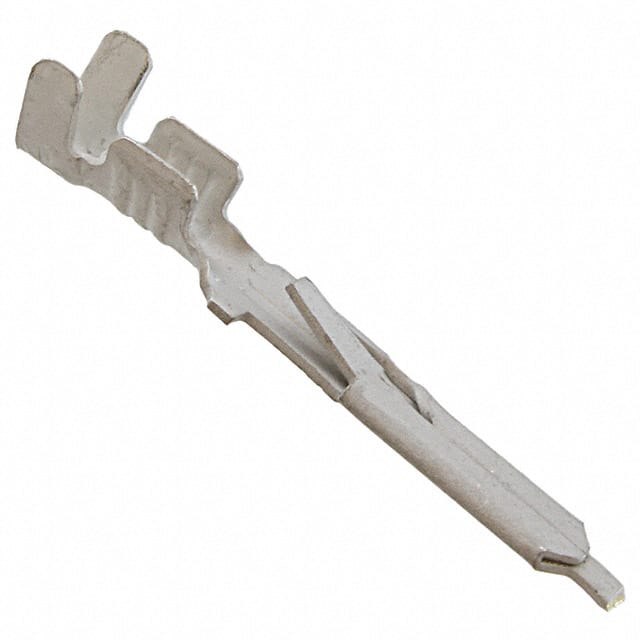

The TE Connectivity 160887-4 is a non-insulated male quick connect tab designed for reliable wire-to-tab connections in a variety of electrical applications. This terminal features a tab width of 0.110" (2.79mm), a tab thickness of 0.032" (0.81mm), and a tab length of 0.500" (12.70mm), making it suitable for standard quick disconnect mating receptacles. It accommodates 17-20 AWG wire and uses a crimp termination method for secure attachment. The contact is made of brass with a tin plating, providing good conductivity and corrosion resistance. The component is designed for free hanging (in-line) mounting and has an overall length of 22.00mm (0.866"). As a non-insulated terminal, it is intended for applications where insulation is not required or where additional insulation is provided separately.

160887-4 Quick Information

Product Type: Quick Connect Tab
Series: FASTIN-FASTON 110
Canonical Name: TE Connectivity 160887-4 Non-Insulated Male Quick Connect Tab, 0.110" Tab Width, 17-20 AWG, Crimp
Subcategory: Non-Insulated

160887-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

160887-4 Features

  • Non-insulated male quick connect tab.
  • 0.110" (2.79mm) tab width for standard receptacles.
  • Accepts 17-20 AWG wire with crimp termination.
  • Brass contact with tin plating for conductivity.
  • Free hanging (in-line) mounting style.

160887-4 Applications

  • Wire-to-tab connections in electrical assemblies.
  • Power distribution in automotive and industrial systems.
  • Quick disconnect applications requiring non-insulated terminals.

160887-4 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the tab width of the TE Connectivity 160887-4?

The tab width is 0.110" (2.79mm).

What wire gauge does this quick connect tab support?

It supports 17-20 AWG wire.

What is the termination method for this terminal?

The termination method is crimp.

Is this quick connect tab insulated?

No, it is non-insulated.

What is the contact material and finish?

The contact is made of brass with a tin finish.
