| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

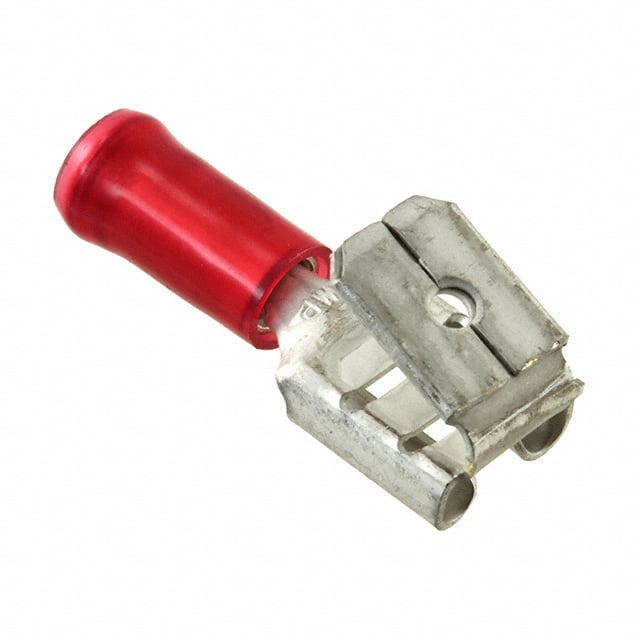

The TE Connectivity 160834-5 is a stacked quick connect terminal designed for reliable wire-to-wire connections. It features both female and male tab configurations on a single terminal, with a tab width of 0.250 inches (6.35mm), thickness of 0.032 inches (0.81mm), and length of 0.305 inches (7.75mm). The overall length of the terminal is 23.55mm (0.927 inches).
This terminal accepts wire gauges from 16 to 22 AWG and uses a crimp termination method for secure attachment. The contact is made of phosphor bronze with a tin finish, providing good conductivity and corrosion resistance. The non-mating end is insulated, offering protection where the wire is crimped, and the terminal is color-coded red for easy identification.
Designed for free hanging (in-line) mounting, this terminal is suitable for applications requiring quick disconnect capabilities. It is commonly used in automotive, appliance, and industrial control systems where reliable and repeatable connections are needed.
Free hanging (in-line) mounting.
16 to 22 AWG.
Tab width: 0.250" (6.35mm), thickness: 0.032" (0.81mm), length: 0.305" (7.75mm).
Phosphor bronze with tin finish.
Yes, the non-mating end is insulated.
Red.
Crimp.
