| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,200 pcs
|
2200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Insulation | |
| Insulation Type | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge |

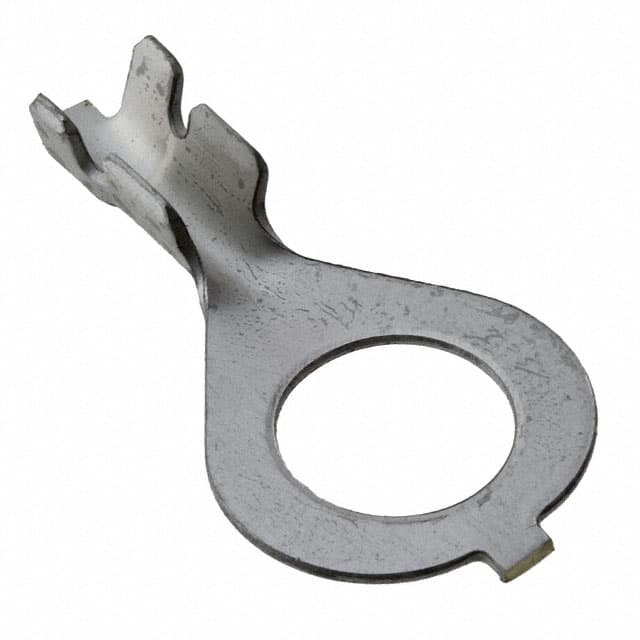

The TE Connectivity 160789-2 is a non-insulated circular ring terminal designed for wire gauges 15-17 AWG. It features a crimp termination method, making it suitable for reliable and secure connections in a variety of wiring applications.
The terminal is constructed with a brass contact material and a tin contact finish, providing good conductivity and corrosion resistance. It has a length of 24.70mm, a width of 13.90mm, and a thickness of 0.61mm. The mounting type is free hanging (in-line), which allows for flexible installation without the need for a fixed mounting point.
This component is categorized as a ring connector within the broader terminals category. It is RoHS3 compliant and REACH unaffected, though these compliance values are unverified. The part is commonly sourced through distributors like Digi-Key, where it is listed under part numbers A107168TR-ND and A107168CT-ND.
The terminal is rated for 15-17 AWG wire.
The termination is crimp.
No, it is non-insulated.
Free hanging (in-line) mounting.
The contact material is brass.
The contact finish is tin.
Length is 24.70mm, width is 13.90mm, and thickness is 0.61mm.
